To control a water-based floor heating system or air conditioning system.

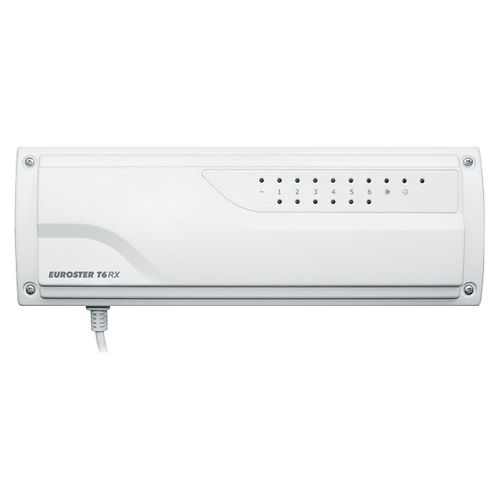

The T6RX controller task is to control a floor central heating (CH) system.Additionally to turning ON/OFF actuators mounted on mixing valves of the floor system, thecontroller may also turn the CH boiler and circulation pump OFF if all heating loops are OFF. The controller may cooperate with wireless EUROSTER room thermostats.
Controlled devices
valve actuators, CH pump, CH boiler
Power supply
230 V 50 Hz
Rated output (combined) load
3 A 230 V 50 Hz
Rated power consumption
1,2 W
Actuator control signal
230 V 50 Hz
Supported actuator type
electro-thermal, NO or NC
Status visualization
LED diodes
Operating temperature range
+5 °C...+40 °C
Storage temperature range
0 °C...+65 °C
IP rating
IP 40, class II protection against electric shocks
Colour
white
Mount method
wall-mounted, wall plugs or DIN rail
Weight (including power cable)
0,577 kg
Certificates/standards
complies with the R&TTE and ROHS Directives
Warranty period
2 years
Dimensions (W/H/D) mm
270/97/50
Packing list
Euroster T6RX controller, wall plugs, instructions
