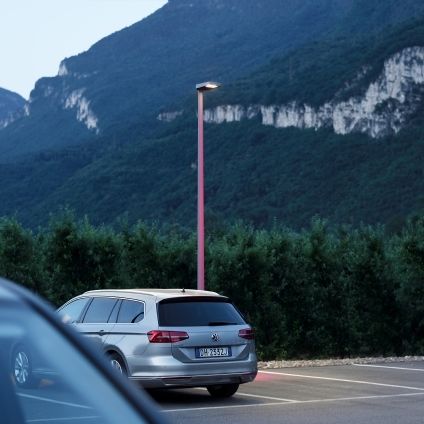

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, street, walkway lighting and lighting of pedestrian crossings.
Designer: Jörg Boner
Current feed: 200–700 mA, depending on ambient temperature (IR3 max. 650 mA)
Max. luminous flux 10,900 lm
Colour temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80, other colour rendering indexes available upon request
Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.
Current feed up to 225 mA, depending on ambient temperature
Max. luminous flux 2,700 lm
Colour temperature Tunable White 2,200-6,500 K, standard CRI ≥ 80, upon request CRI ≥ 90
Electronic operating device with DALI T8 interface.
