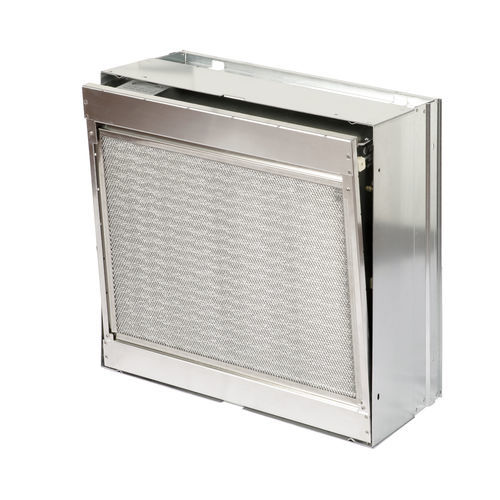

Galvanised steel frame XTFE SERIES

for air filtration

Specifically designed for FE System electrostatic filters, in standardized dimensions610 x 610 mm (24 ’’ x 24 ’’), 610 x 305 mm (24 ’’ x 12 ’’) and 305 x 610 mm (12 ’’ x 24 ’’). The frame is made of galvanized sheet metal bent, joined with rivets and equipped with gaskets for air tightness and special screw-type filter stops. Compared to standard frames made of light sheet metal, this type of frame is capable of bear the weight of electronic filters without being deformed. It can be used to make various combinations of horizontal or vertical electrostatic filters. The frame allows, in addition to the housing of the FE System filter, also the housing of a48 mm or 95 mm thick corrugated filter. The coupling between the various modules comes carried out by means of nuts and bolts of low thickness.
