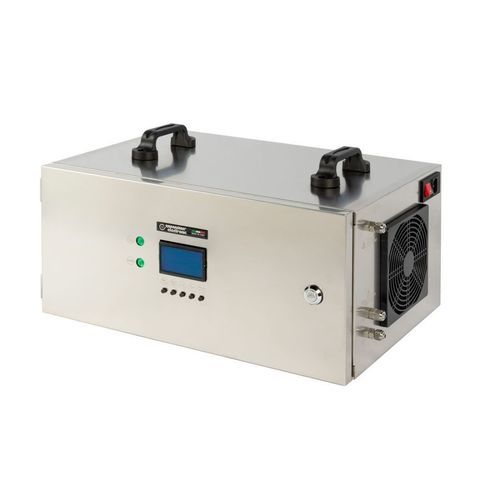

Commercial kitchen ozone generator XFX SYSTEM

commercial

Product overview
The XFX SYSTEM ozone generator is designed for combined use with ecology units in professional and commercial kitchens. It provides continuous treatment of cooking odours and prevents delayed release of unpleasant smells caused by residual oil and grease in ducts or inside ecology units.

Operation
Activation occurs with the suction of the extraction fan so that ozone is only generated when the exhaust system is running, avoiding ozone release into occupied workspaces. Emission is controlled by a safety pressure switch. Ozone is injected at the start of the ductwork using a porous stone, typically at the hood inlet or inside the hood after the first grease filters.

Design and installation
The unit is constructed entirely of stainless steel and features a compact footprint for near-hood placement. It can be installed on a shelf or fixed to the wall using two simple brackets for easy integration into existing extraction systems.

Usage and safety
Follow the instructions and conditions of use provided by Expansion Electronic. Ensure correct placement of the injection point and compliance with local safety and ventilation regulations to prevent operator exposure.

Technical specifications

• Application: combined use with ecology units in professional and commercial kitchens
• Purpose: continuous treatment of odours; prevents residual oil/grease odour release in ducts and units
• Activation: triggered by extraction fan suction
• Safety activation: safety pressure switch
• Injection method: porous stone (injection at duct start or in hood after first grease filters)
• Construction: stainless steel housing
• Mounting: shelf or wall mount with 2 brackets
• Manufacturer: Expansion Electronic
