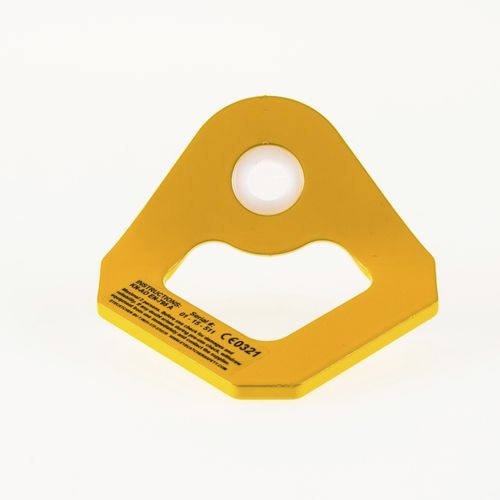

Stainless steel safety anchor KN-AO

The safety anchor KN-AO is suitable for mounting to various (building-) constructions, such as: concrete elements, wooden elements and steel constructions. With only one M12 anchor, the safety anchor KN-AO is quickly installed. aanhaakoog KN-AOAn engineer must determine if the safety anchor can be installed onto the desired surface, which should hold a force of 12 kN pull when used by one person and 13 kN when used by two persons. The minimum concrete thickness at anchoring of KN-AO is 120 mm and the minimum diameter of the anchoring is M12. In case of chemical anchors the drilling hole is not to go through the whole construction, since a good and fully bonding cannot be guaranteed. The quality of steel rod ends should be at least 5.5 or in case of stainless steel class 70. For more technical and installation details the installation manual must be consulted. SPECIFICATIONS ▪ 100 mm wide and 5 mm thick. ▪ 50 mm high. ▪ One (1) M12 anchor for fixation. ▪ User-friendly and easy to use. ▪ Long life span due to use of sustainable materials. ▪ Stainless steel material coated in RAL-1003 (signal yellow). ▪ Tested and certified by DEKRA EXAM GmbH. ▪ EN-795:2012 type A & TS-16415:2013. ▪ To be used by maximum two (2) persons.
