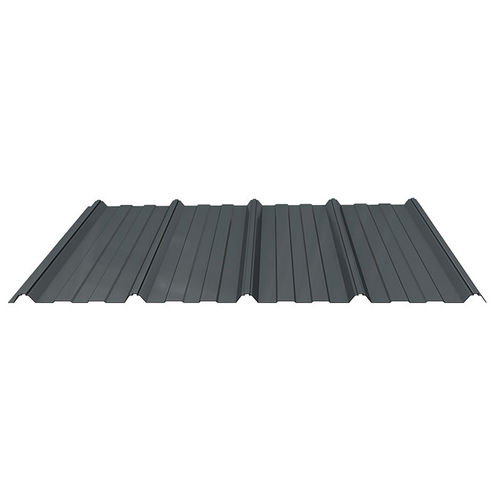

Pitched roofing panel GRANDRIB 3®

steelaluminummetal look

Grandrib 3® is well known as a benchmark in the industry. For barns and other agricultural buildings, this unique and versatile panel is available in a variety of popular colors. The panels have clean traditional lines, and are manufactured from the best structural steel available. Minimum pitch recommended 2½:12 36” coverage with ¾” rib height UL 790 Class A Fire Resistance Rating UL 2218 Class 4 Hail Impact Resistance UL 580 Class 90 Uplift Test Rating High performance Enduracote paint system features an Energy Star® approved standard color offering Custom cut to lengths up to 40’ Anti-Siphon sidelap design Excellent wind uplift and snow load ratings 29 gauge structural quality full-hard galvanized steel G60 galvanized 26 gauge high strength galvalume steel .016” aluminum Fabral Grandrib 3®, manufactured from the best available coated steel, sets the industry benchmark for performance and endurance. Fabral liner panel, fabricated with consistent substrate and color, economically finishes your building interior in the style it deserves.
