Flat roofing panel STAND 'N SEAM®

steelaluminummetal look

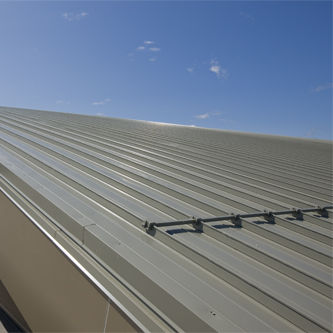

This high performance, mechanically seamed roof system satisfies the most demanding applications. The panels can be roll-formed and curved to span an entire roof without end seams. Highest wind-uplift resistance of any standing seam panel on the market Unrestricted thermal movement Double lock-seamed side joints Factory or field-forming Factory applied sealant Substrate Offering: .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel and Copper Maximum Factory Forming Panel Length: 47′ Minimum Panel Length: 6′ Min Roof Slope: 1/2:12 Hail Resistance: UL2218, Class 4 Fire Resistance: UL790, Class A Stand ‘N Seam® was ideal for creating the large curved roof of the GA Tech indoor football facility. Not only is it durable, the panels were roll-formed onsite so that they could span the roof without end seams. For the most demanding applications, Fabral® offers Stand ‘N Seam®. This high-performance, structural roof system boasts the highest wind uplift resistance of any standing seam panel available in the market. A unique onepiece stainless steel clip design allows for unlimited thermal movement. Side joints are double lock-seamed to ensure weathertightness. This workhorse panel is factory or field-formed to yield continuous long length panels, eliminating unsightly end-laps from ridge to eave. • Roof Slope: Minimum required - ½ :12 • Purlin Spacing: Maximum – 5’ on-center • Field Curving: Minimum radius 150’ • Field forming available up to 300’ (16’ panel only)
