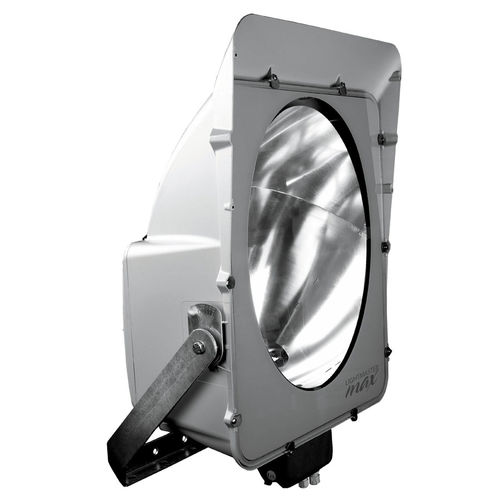

IP66 floodlight LIGHTMASTER MAX

discharge lampcommercialfor multipurpose gym

The design philosopy of LIGHTMASTER MAX floodlight includes the best of the entire LIGHTMASTER series: aesthetics, technology, photometric performance and flexibility of use. A careful study applied to asymmetric optics make it the most rational and efficient floodlight for professional lighting of sports facilities, sports arenas, outdoor areas, events and shows in large open areas. TECHNICAL SPECIFICATIONS Body and rear cover in die cast aluminium with primary alloy and low copper content, with an high weather proof rating. Coated with silver polyester powder. Front tempered glass resistant to high temperatures and to thermal shock, anchored to the body with 10 special stainless steel devices. Anti-ageing gaskets in silicon rubber. Hot deep galvanized sheet steel fixing bracket. A series of equidistant holes allows an accurate positioning and fixing. For wall mounting applications, it is necessary to provide the proper accessory. Connection box in special selfextinguish plastic material. For double ended lamps, the connection box is complete with ignitor. Aluminum protractor scale to perform precise vertical aiming of the projector. Two pressure compensation filters in teflon. Insulation classe I and II. Protection degree against external impacts: IK 08. Floodlight body weight Kg 20,50.
