Installation

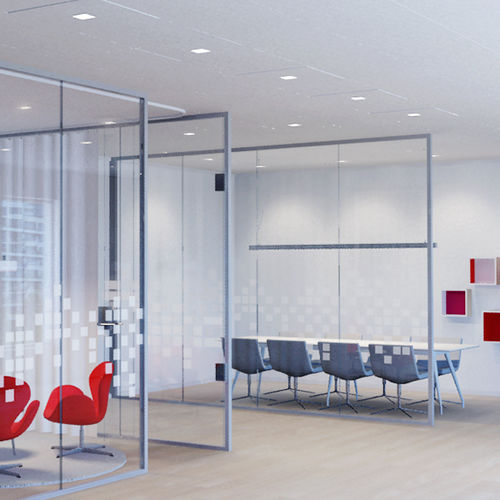

Recessed mounting in suspended ceilings. Unventilated or ventilated ceilings. Assemblysprings for quick assembly are included. An assembly plate should be used for installation in soft tile ceilings, see accessories.
The luminaire must not be covered with insulation. For further details please refer to the assembly instruction.
Connection
Connections are made to a Class II driver. 0.5–1.5 mm². The luminaire is delivered with a cable for connecting to the supplied driver.
Design
Round (DLC) or square (DLS) body. Body/reflector of white enamelled cast aluminium. Heat sink in aluminium. Assembly springs in spring steel. Tilt 20°.
LED-information
3000/4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM.
Driver life-time: up to 50.000 h/10 % (max failure).
Miscellaneous
COB-type LED equipped with acrylic lens for desired light distribution.
