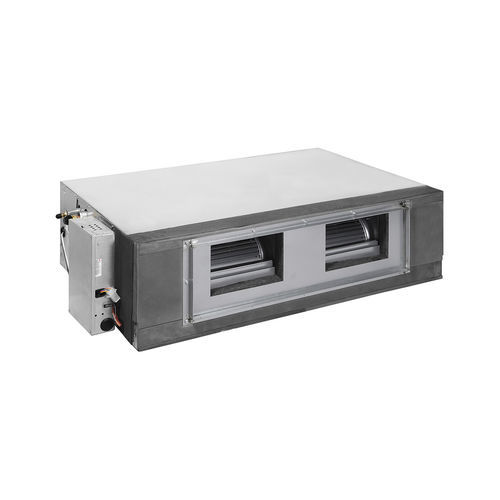

Duct air conditioner FDH 6013H

splitcommercialreversible

60000 btu professional line inverter air conditioner, with ducted installation. Cooling power 15.5 kW (4.00 - 16.50) Heating power 16.5 kW (4.00 - 18.00) Dehumidification 5.1 L / h Ventilation 2000 - 2600 mc / h Cooling range 10 ÷ 46 ° C Heating range -15 ÷ 24 ° C Piping (Liquid-Gas) 3/8 "- 3/4" Dimensions U.Int (LxHxP) 1197x360x830 mm Weight U.Int 70 Kg Sound pressure U.Int 55 dB (A ) Dimensions U.Ext (LxHxP) 948x1250x340 mm Weight U.Ext 96 Kg Sound pressure U.Ext 52 dB (A) Condensate tray The unit contains a condensate tray, easy to disassemble; furthermore, drainage can be carried out on both sides by simply changing the direction of the tray. Simple and flexible installation Thanks to its very compact dimensions, installation is simple and flexible. The ducting can be round or rectangular. The 28-36K model has the advantage of arranging the number of the air flow and its mounting position according to the layout of the rooms, once the load and the uniform temperature of the single room have been considered sufficient, it allows to create a system in perfect comfort. .
