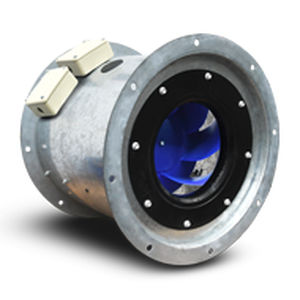

Axial exhaust fan VORTAIR EC SERIES

ductcommercialindustrial

Description The Vortair® EC Series of In-Line Mixed-Flow fans incorporate the latest state-of-the-art, energy saving EC motor technology and are most efficient where conditions vary during the course of the day. They feature fully integrated, infinitely variable speed control which eliminates the need for external VSDs, current overloads and motor phase protection. Optional matching sensors monitor the ambient conditions and provide real time feedback to the fan. The fan's on-board microprocessor adjusts the speed and therefore modulates the ventilation rate to match the specific requirements of the area. The Vortair® EC fans are a simple "plug and play" system which means installers do not need to have specialised control programming knowledge. Vortair EC Series feature a heavy duty galvanised steel circular fan casing that can be retrofitted into axial fan installations that may require greater static pressure. They are available in 5 case sizes ranging from 450 to 710mm diameter (280 to 450mm impeller diameters). Typical Application Commercial and industrial supply or exhaust applications such as shopping centres, office buildings, exhibition centres, hotels, health centres, schools and universities. Features Innovative mixed-flow impellers produce powerful airflows without generating high noise levels. EC motor features reverse polarity protection, locked rotor protection and soft starting. No additional electrical protection such as contactors are required. All models supplied standard with 0-10V control input. Diameter sizes from 400mm and above can be pre-configured to suit specific sensors and specific applications.
