Door hinge MONZA

extruded aluminumthree-leafblack

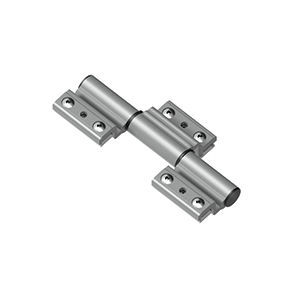

MONZA three-leaf hinge for Eurogroove profiles (with frame groove 14x18mm) Three-leaf hinge suitable for doors manufactured from window profiles. It is fitted directly on profile grooves with no need of further machining. Hinge bodies and counterplates in extruded aluminium, pressure adjusting bushes in Delrin, pivot and screws in stainless steel, caps in nylon. It is supplied with pre-assembled counterplates. Equipped with horizontal adjustment (+/- 2mm), vertical (-0, +4mm) adjustment with the door closed and in pressure through rotation of a bush (+/- 0,5mm).
