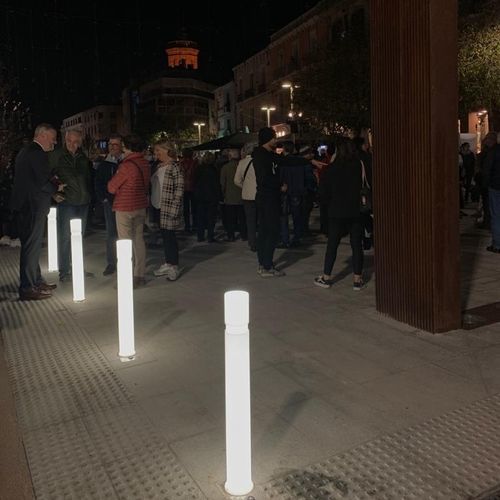

A visionary and innovative design to highlight urban areas, bound pedestrian zones and enhances the architecture of monuments and buildings. The Luminous Bollard stands out due to its clean and smooth lines without any visible fastening system once the bollard is installed and the easy maintenance operations.
Dimensions: Ø100 mm - H800 mm. (HT1000)
Whit 30mm reflective strip possible (on demand)
Weight: 17 kg
Technical features - Standard version:
PROJECTOR 230Vac
The spotlights are supplied with a 2-wire 1.5mm2 Cu H07RNF cable.
You should make sure that the voltage received by the lamp is never more than 240V.
Electrical consumption: 10W (17VA)
Rated voltage: 110V-240V
Frequency 50/60 Hz Class 2
Current supply ~ AC
Protection CLASS II – IP68
Operating temperature: spotlight-20°C / 70°C, bollard -40°C / 60°C UNE-53541
RoHS compliant - Restriction of Hazardous Substances.
Materials and components:
Bollard: Translucent ( red or white) Blendtech – Polyurethane against UV
Ability to absorb the impacts of the vehicles and fully recover verticality
Formwork: anti-corrosion treatment and inox steel 304 (AISI)
Small imperfection on the bollard is part of its intrinsic structure.
