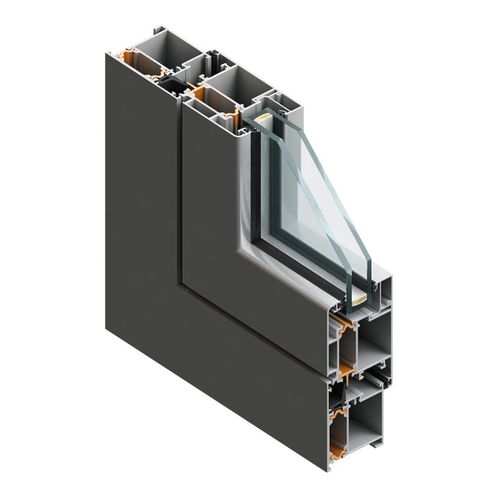

Aluminum window profile TERMO 50
thermal break

aluminum window profile
aluminum window profile
Add to favorites
Compare this product


Characteristics

Material
aluminum
Technical characteristics
thermal break

Description

Profiles with a thermal break have the properties of high quality. Strength and capacity, aesthetic design, and what distinguishes them from other profile is a property of thermal insulation. The profiles consist of two parts, which are joined together, an insulating material-polyamide rod width of 14mm, 22mm, 34mm.Such profiles are connected together with suitable fillers are used in cases where it must meet the high demands on thermal insulation.Polyamide prevents the passage of heat from the inner part of the Al-profile in the outer part and vice versa. Common features: possibility the opening of different types chamber of bands with "euro groove" ​​seal of quality EPDM peroxide vulcanization. primary aluminum alloy AlMgSi 0.5 surface protection is the anodizing or plastyfing Frame depth: 50 mm Sash/wing depth: 58 mm Overlap dimension: 8 mm Infill depth: 6-36 mm Polyamide sticks: 14,8 mm Euro groove CALCULATION OF THERMAL TRANSMITTANCE UW - TERMO 50 According to prEN 10077-2 dimension of windows 1230x1480 mm Ug=0.6 W/m²K Uw = 1.6[W/m²K]
