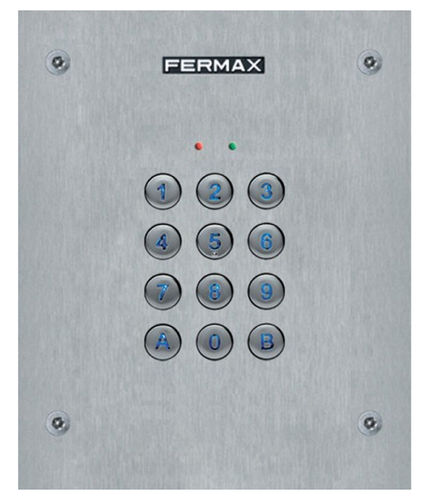

Access control code keypad MARINE MEMOKEY: 04699

Telephone type keypad that lets you open the door when a previously programmed 6 digit code is entered. Stand-alone Access Control System. For installations where a simple access control is required, with no incidents record, to complement the audio/video door entry system and enable access to the building for residents, for example: offices, small businesses, garages. TECHNICAL SPECIFICATIONS Standalone Power supply: 12 Vac/Vdc Up to 100 user codes - Code length 4 to 6 digits. - Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable. - Exit button input. - Free access button (trades) input. - Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door open/forced. - Confirmation by keypad pulsation tone and acceptance or rejection of the code entered. - Programming from the keypad by master code. - Power supply 12 Vac / 12 Vdc - Consumption: 6 mA (standby), 60 mA (active). - Protection IPK 536 Weight: 1,64248 kg Size of product when packed: 21x15,8x7,8 cm EAN 13: 8424299046990
