Metal video intercom system CORA VEO-XL DUOX PLUS

for commercial buildingsresidentialsurface-mount

Overview

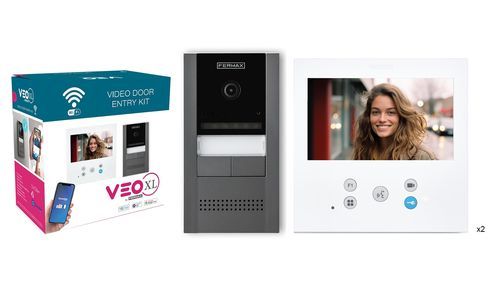

The CORA CORAKIT DUOX PLUS 2-wire video intercom kit integrates a surface-mounted CoraKit panel with Duox digital technology and two VEO-XL 7" Wi‑Fi monitors. The system is pre-programmed and ready to install, enabling remote call handling and door release via the DuoxMe app on mobile devices.

Included components

• 1x CORAKIT DUOX PLUS 2L
• 2x MONITOR VEO-XL WIFI 7" DUOX PLUS
• 2x DUOX PLUS CONNECTOR
• 1x FEEDER + FILTER DIN6 24VDC - 1.5A
• 1x DUOX PLUS LINE ADAPTER

Technical specifications

• Reference: 7766
• Technology: DUOX (2-wire, 100% digital)
• Weight: 0 kg
• Packed measures: 19.7 x 14 x 20 cm
• EAN 13: 8424299077666
• Panel: surface-mounted zamak housing; wide-angle camera; communication status icons and voice prompts; backlit card holder; LED scene lighting
• Kit: pre-programmed and ready to install

Installation & connectivity

• Pre-configured for fast deployment; no panel opening required for configuration
• Web server configuration via mobile, tablet or PC
• Integrated Wi‑Fi on monitors for call diverting to mobile devices through DuoxMe app
• Includes power feeder, filter and line adapter for DUOX connection

Monitor features

• Integrated Wi‑Fi for remote call reception and door release
• Automatic image capture on call
• Auto power-on and dedicated door opener button
• Melody selection and adjustable call volume

Applications

• Access control for residential buildings, small offices and commercial premises
