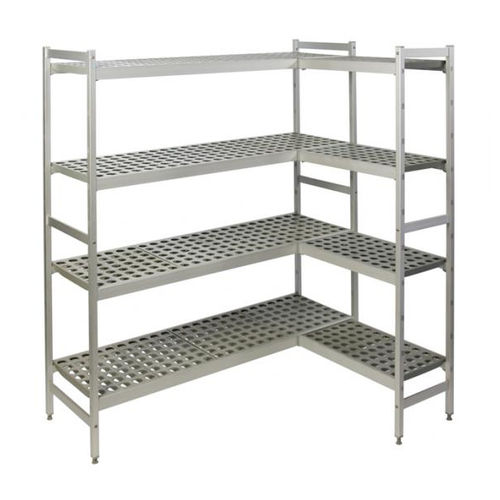

Commercial shelving 6 series

merchandisestandardstainless steel

Assembly is through conic metal clamps manufactured in anodized aluminium ensuring extremely stable units. Fermostock can be installed in singular units or combinations allowing a number of configurations including « L », « U », « T », and « + » layouts. Using temperature : - 40°C to + 60°C. Available standard sizes: - 4 heights of uprights: 1685, 1800, 2100, 2400 mm - 3 depths: 360*, 460, 560* mm - 10 lengths: 660, 780, 900, 960, 1080, 1200, 1320, 1500, 1620, 1740 mm * Dimensions to receive Gastronorm trays. Three versions of removable shelf inserts: Ref 6611 : Polymer shelf inserts Ref 6811 : Anodized aluminium shelf inserts Ref 6811/B : Anodized aluminium shelf inserts (Laboratory) Specifications High rigidity due to the conception of assembly (patented) through conic metal clips manufactured in anodized aluminium ensuring extremely stable units, Return angle on the full depth with complete unobstructed access, Quick and easy assembly, without tools, Possibility of adjusting levels without tools of 150 mm increments to desired height Fine adjustment with composite inserts Operating temperature (-40°C/+60°C) Easy cleaning through the use of removable shelf inserts (machine washable up to +100°C) Uprights delivered neutral without clip, but these are delivered with the shelf inserts Fully accessible from both sides as no crossed bracing is required Possible mounting configurations straight , "L", "U", "T" and "+" Anodized Aluminium shelf inserts are reversible (flat tube or half-round) Possibility of mixing the different qualities of shelf inserts: 6611, 6811, 6811/B, 6622
