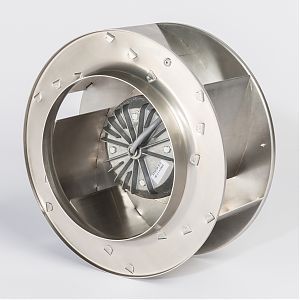

Centrifugal fan FLR/FLRE-EC SERIES

ductcommercialindustrial

Freewheeling impeller for AHU with backward curved impellers made of aluminum and 100% adjustable Disc-Rotor-Motor/EC Disc-Rotor-Motor. The particular curvature provides a high power density and simultaneously low running noise. The impellers consist of riveted or welded aluminum wheels and have a flange for direct mounting. The FLRE/FLRE-EC, FMB/FMB-EC and FMBT Series have a mounting frame made of stable steel structure, with a fixed axle and rubber-metal connections (vibration) for smooth running. The housings consist of a robust frame design (aluminum) with 40mm cladding (insulation). Max. Volume: 15,500 m³ / h 4-pole, 230V / 400V / 50Hz / 60Hz with Fischbach EC controller IP54 / IP21 inverter / IP66 Adjustable speed via interface via 0-10 Volt Insulation class F (155 ° C) to VDE 0530th Motor protection IP 65 (electrical part) according to DIN 40050 / CE mark. ErP conformity Aluminum impeller with backward curved blades, riveted or welded. Aggregate fine balanced according to ISO 1940 Part 1 to grade Q. 1. Mounted on flange. The EC-disc armature motor is operating sensorless and comes with a thermal contact. Maximum operating temperature: 70 ° C. FISCHBACH multi exhaust unit with freewheeling impeller Casing steel-galvanized frame construction from robust Aluminium Profiles, with plastic corner pieces and removable casing panels with P.V.C. frame, in double skin construction 41 mm deep. Insulation of mineral fibre, not flammable, with high thermal resistance and high acoustic insulation value. Multi – Box made by robust frame design (aluminum) with 40mm cladding (insulation).
