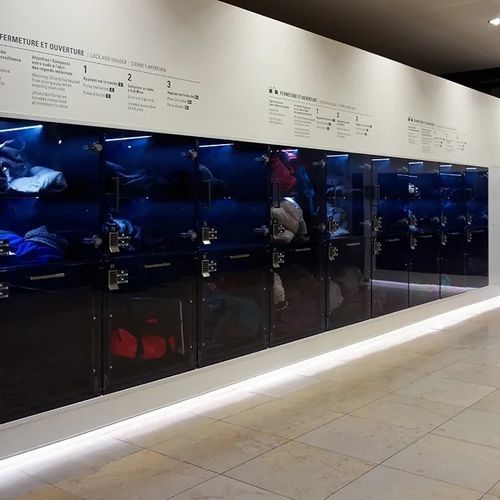

Melamine locker COLLECTIVE

combinationkeyfor public buildings

• Single column: W 450 mm / D 547 mm / H 2100 mm • Single column: W 400 mm / D 547 mm / H 2100 mm • Height with skirting board: 2170 mm • Structure in 18 mm thick MFC panels • ABS edging with polyurethane glue • Door in transparent polycarbonate 15 mm thick • Adjustable feet • Hinges certified for 80,000 opening and closing cycles • Breaked hinges • Door opening angle 155°. • Door number in resin-coated sticker with Fit Interiors logo • Keylocks (with 2 keys + numbered locker key wrist strap) • internal structure in two colours: white and black • IP20 LED with trunking, 24Vdc 50W power supply and 9.6 W/m LED strip at 24Vdc choice of light colour: (C) 6000 K cold light / 4.8W per metre, 24 V (N) 4000 K natural light / 4.8W per metre, 24 V (W) 3000 K warm light / 4.8W per metre, 24 V • structure in 18 mm thick MFC, flame retardant and flammability class B-s1, d0 (EN 13501-1) • other types of adhesive numbers • Other types of lock (mechanical or electronic) • USB socket • Side panel • Side panel with LED channel • Side panel with mirror • Side panel rounded above and below • Rounded panel for internal corner • Rounded panel for external corner • Top • Top with integrated LED channel • Upper veil • Adhesive LED to put under the locker • Skirting board in ABS in three colors: satin aluminum, white e black
