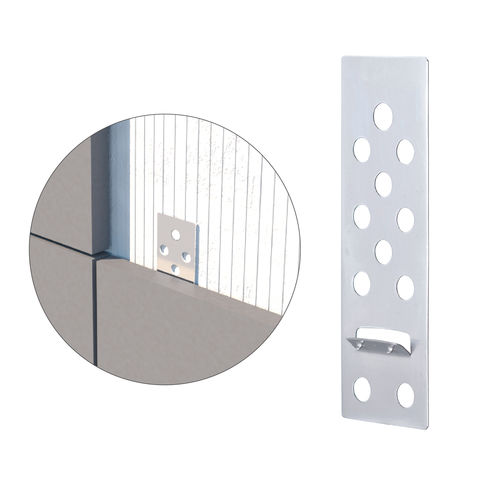

Facade cladding hook FIX08200

for tilestainless steel

FIXOTILE 8 mm - 200 uds - Safety hook for tiles and slabs installed in façade with adhesive FIXO-TILE is a security hook that allows you to comply with the requirements demanded by the regulations in force described in the Code Building Technician (CTE-DBHS1). In the case of cladding on the facade, attached with adhesive cement, it guarantees respect for the standard and a breaking strength per hook between 50 and 65 kilos depending on the type of hook used. FIXO-TILE is a flat hook with perforations, made of steel AISI 304 / EN 1-4301 stainless steel, 0.5mm thick. It has a fin that is embedded in a slot made at 45º on the back of the tile, and with perforations to be able to be fixed to the supporting wall. It can be applied to any type of tile (ceramic, porcelain, natural stone,…) that has to be held vertically. Available for tiles thicker than 5, 6 and 8 mm (even 4 mm with mesh, see manual). In a glued, ventilated, or covered facade with SATE system, only the type of screws changes for fixing to the supporting wall.
