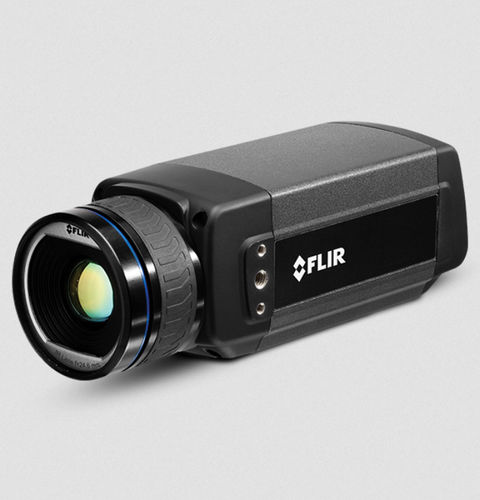

Fixed thermal camera A615

boxsurface-mountedoutdoor

The FLIR A615 is an easy-to-control, affordable, and compact thermal imaging camera for condition monitoring, process control/quality assurance, and fire prevention. This camera can be fully controlled by a PC, and is Plug and Play with third-party machine vision software such as National Instruments, Cognex, Matrox, MVtec, and Stemmer Imaging. The Flir A615 features a 640 x 480 pixel microbolometer that detects temperature differences as small as 50 mK, for accuracy at longer distances. Measure temperatures in non-contact mode using any third-party software thanks to 16-bit temperature linear output. Stream full-frame 16-bit images at 50 Hz, or in windowed mode as high as 200 Hz, for high-speed processes. Highlighted Digital I/O connector type - 6-pole jackable screw terminal Digital Inputs - 2 opto-isolated, 10–30 VDC Digital Output Purpose - Output to ext. device (programmatically set) Digital Outputs - 2 opto-isolated, 10–30 VDC, max 100 mA EMC - EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission) f-number - 1.0 Image Frequency - 50 Hz (100/200 Hz with windowing) Thermal Sensitivity/NETD - < 0.05°C @ +30°C (86°F) / 50 mK Accuracy - ±2°C or ±2% of reading Communication & Data Storage Digital I/O connector type - 6-pole jackable screw terminal Digital I/O isolation voltage - 500 VRMS Digital I/O supply voltage - 12/24 VDC, max 200 mA Digital input purpose - Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read) Digital Inputs - 2 opto-isolated, 10–30 VDC
