Single wall chimney flue

stainless steelcomplete system

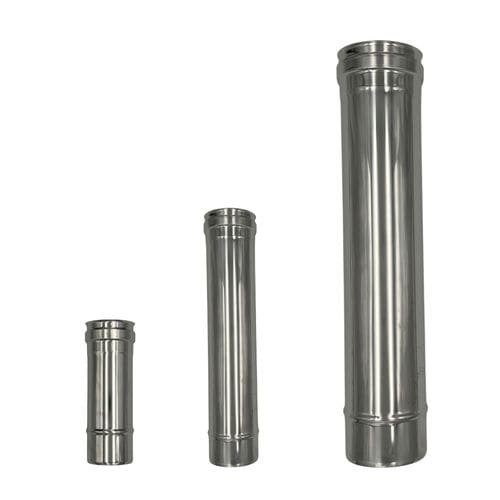

The single-wall chimney system has been designed to provide a simple and safe solution both for the adaptation and restoration of old chimneys, and for the construction of new chimneys housed inside the walls or inserted in technical slots, and for the creation of smoke channels and exhaust ducts located in sight inside the rooms. The system can be installed with or without gasket. The socket connection joint allows a high overlap of the elements (50mm), which in addition to ensuring the mechanical stability of the system, guarantees its impermeability in the case of wet operation in depression. - Chinese hat and single wall stainless steel weatherproof terminal - Single wall stainless steel variable element - Single wall stainless steel pipes and curves - Base Plate with Side Exhaust and Single Wall Stainless Steel Intermediate Plate - Single Wall Stainless Steel 'T' Fitting - Mono-Double Input and Double-Mono Output Connection - Condensation Drain and Blind Plug Stainless Steel Single Wall - Universal Wall Strap, Safety Clamp for Locking Stainless Steel Pipes and Silicone Gasket T200 - Single Wall Stainless Steel Joint Sleeve - Inspection element with round stainless steel single-wall door and Ash Collection Element Single Wall Stainless Steel Frame Door
