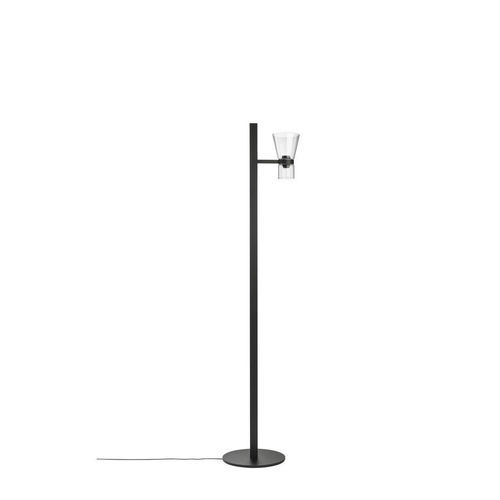

Floor-standing lamp NOCTURNE F1 CONE

metalextruded aluminumaluminum

Product description
Modular floor lamp providing direct and ambient lighting. A flat metal base supports a vertical extruded aluminium track electrified at 48V on both sides; movable light units can be positioned anywhere along the track. The conical extra‑clear borosilicate glass diffuser features a focused optic for directional illumination. The Light Engine is die‑cast aluminium housed within lamp junctions. Dual LED sources (COB + perimetral halo) and a two‑axis swivel enable precise aiming. Dimmable push‑button control; remote dimming options available.

Main features

• Modular floor lamp for direct and indirect lighting
• Vertical extruded aluminium electrified track (48V) with movable light units
• Extra‑clear borosilicate glass conical diffuser with focused optic
• Die‑cast aluminium Light Engine located in lamp junctions
• Dual LED sources: COB LED plus perimetral halo LED
• Conical light unit swivels on two axes for directional illumination
• Dimmable: push‑button control; remote dimming/driver options described in specifications

Materials & construction

• Flat metal base
• Extruded aluminium track (electrified at 48V)
• Extra‑clear borosilicate glass diffuser (conical)
• Die‑cast aluminium for Light Engine and junctions

Light & control

• Light source: LED (LED array / LED module)
• CCT: 2700 K (warm white)
• Power: 15 W
• Forward voltage: 100–240 V
• Lighting type: Direct and Indirect
• Dimmable: Yes (push‑button; remote dimmable; dimmer not included)
• Driver: Remote included — electronic 48V power supply; control gear replaceable as specified
• Light source replaceable: Replaceable (LED only) by a professional

Downloads (available)

• Mounting_Instruction_NOCTURNE_F_38128.pdf (installation instructions)
• tech-spec-nocturne-f1-cone-d305f07cdeab1_global-en.pdf (specification sheet)

Technical specifications

• Item code: D305F07CDEAB1
• EAN: 8059607080030
• Color: Black (other finishes available)
• Environment: Indoor dry location
• Mounting: Floor
• Power (W): 15
• Forward voltage (V): 100–240
• CCT (K): 2700
• IP rating: 20
• Light source type: LED
• LED type: LED array, LED module
• Lighting type: Direct, Indirect
• Light source replaceable: Replaceable (LED only) by a professional
• Weight: 12.8 kg
• Width: 370 mm
• Length: 455 mm
• Height: 2055 mm
• Cord length: 3200 mm
• Plug type: Type A
• Driver: Remote included (electronic 48V)
• Dimmable: Yes — Remote Dimmable (dimmer not included)
• Batteries inside: No
• Power supply replaceable: Replaceable control gear by an end‑user (as specified)
• Certifications: CE, UL and others as listed by the manufacturer
