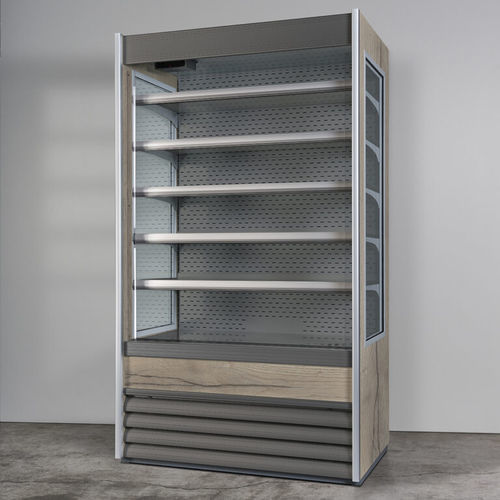

Shelf refrigerated display case ALASKA MAXI

for shopmetalaluminium

Overview
Like all Fogal products, Alaska Maxi is available in two lengths, two depths and can be accessorized with a wide range of options and coverings. The 790‑deep model features deeper shelves, increasing the display area by 15 percent compared to Alaska Vbn.

Dimensions
Nominal lengths / real lengths (mm): 71 (710), 100 (960), 120 (1250), 150 (1510), 180 (1856), 240 (2436), 300 (2956), 360 (3648 remote / 3622 plug‑in).
Depth (mm): standard 790; slim 635.
Height (mm): 2190.
Front height (mm): 635.
Available in plug‑in and remote versions (configurations noted where applicable).

Structure

• Steel and wood water‑repellent chipboard framework.
• Solid ends or panoramic ends available.
• Self‑and slow‑closing glass sliding doors (note: on 71 cabinets sliding doors are not self‑closing).
• Hinged glass doors and hinged (swing) doors available.
• Lower grille available in all RAL colours.
• Adjustable feet and optional castors for easier movement.
• Base shelf + 5 rows of adjustable complete shelves with brackets and ticket strips.

Access & closure options

• Self and slow closing glass sliding doors (low‑emission thermal glass closing system designed by Fogal Refrigeration).
• Manual shutter (white/grey/stainless steel effect) and motorised night blind available.
• Motorised shutter option (white/grey/stainless steel effect).
• Rear loading doors (available with full doors or glass doors and white or aluminium frame).

Technology

• Plug‑in and remote versions available (remote often on demand).
• Monophase hermetic compressor 230V‑50Hz (plug‑in).
• Electronic fans and fan‑assisted refrigeration system.
• Fan‑assisted condensing system.
• Electronically controlled refrigeration system.
• Thermal expansion valve.
• Stainless steel tray for automatic collection and evaporation of waste water by means of hot gas (plug‑in) and stainless steel tray with self‑adjusting PTC sensor for automatic evaporation (plug‑in).
• Low noise level (≤ 40 dBA) for cabinets with front doors.
• Top LED light.
• Climatic class 3 (ambient temperature up to 25°C, max relative humidity 60%).
• Product temperature classes: 3M1: -1 ÷ +5°C (range reg. 0/+2°C); 3M2: -1 ÷ +7°C (range reg. +3/+5°C).
• Refrigerant gas R290 (plug‑in). Other refrigerant options available: CO2, R513a, R448a, R407a, R407c, R134a, R452a, R449a, R407f, glycol (many gases available for remote versions on demand).

Available claddings & finishes

• Aluminium trims and ABS inner profiles; black and dark grey colour on demand.
• Internal and external visible parts epoxy powder coated – white colour (standard).
• Polished or satin stainless steel internal and external parts (note: on stainless steel cabinets some components may be galvanized or powder coated).
• Internal and external RAL colour coating available on demand.
• Wide range of laminated external cladding options.
• Wide range of options and accessories available (see options: shutters, night blinds, castors, adjustable feet, rear loading doors, shelves, ticket strips, etc.).

Caractéristiques / spécifications techniques

• Model name: ALASKA MAXI.
• Nominal lengths / real lengths (mm): 71 (710); 100 (960); 120 (1250); 150 (1510); 180 (1856); 240 (2436); 300 (2956); 360 (3648 remote / 3622 plug‑in).
• Depths: standard 790 mm; slim 635 mm.
• Height: 2190 mm.
• Front height: 635 mm.
• Versions: plug‑in and remote (many remote options on demand).
• Compressor: monophase hermetic 230V‑50Hz (plug‑in).
• Fans: electronic fans; fan‑assisted refrigeration and condensing systems.
• Control: electronically controlled refrigeration system; thermal expansion valve.
• Waste water management: stainless steel trays for automatic collection/evaporation (hot gas or PTC sensor versions).
• Noise level: low noise ≤ 40 dBA (for cabinets with front doors).
• Lighting: top LED light.
• Climatic class: 3 (ambient up to 25°C, max RH 60%).
• Product temperature classes: 3M1 (-1/+5°C, reg. 0/+2°C) and 3M2 (-1/+7°C, reg. +3/+5°C).
• Refrigerants: R290 (plug‑in); remote versions can use CO2, R513a, R448a, R407a, R407c, R134a, R452a, R449a, R407f, glycol (on demand).
• Doors & access: sliding glass doors (self/slow closing), hinged glass doors, hinged doors, manual/motorised shutters, night blind motorised option.
• Structure: steel + water‑repellent chipboard framework; solid or panoramic ends.
• Adjustments & mobility: adjustable feet; castors available.
• Shelving: base shelf + 5 rows of adjustable complete shelves with brackets and ticket strips.
