Single-flow ventilation unit NOVATYS FLAT ECM
commercialfor kitchensfor commercial kitchen

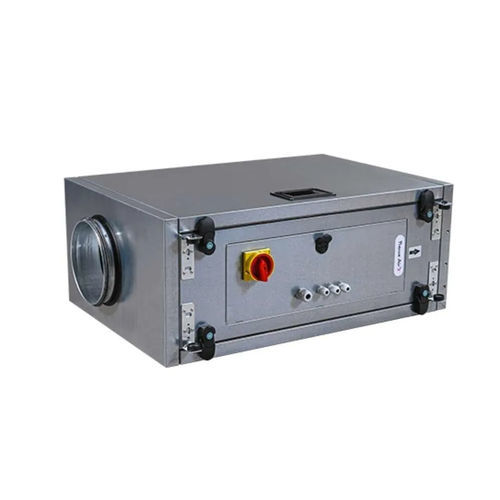

Single-flow ventilation unit - NOVATYS FLAT ECM - FRANCE AIR - commercial / for kitchens / for commercial kitchen
Single-flow ventilation unit - NOVATYS FLAT ECM - FRANCE AIR - commercial / for kitchens / for commercial kitchen
Add to favorites
Compare this product

Characteristics

Type
single-flow
Sector
commercial
Applications
for kitchens, for commercial kitchen
Options
compact, remote-controlled, energy-saving, programmable, wall-mounted

Description

APPLICATION / USE
  • Ventilation, filtration and preheating of outdoor air with self-regulating system for commercial premises and professional kitchens.
  • Extraction and supply casing for clean air.
  • Ideal for renovation projects and installations in confined spaces.
  • Installation and connection: indoor.
  • Multi-position installation: horizontal (floor or ceiling) and vertical (wall-mounted).
  • Fluid temperature range: -25 to +50 °C.
  • Supply of clean air to commercial premises.


ADVANTAGES
  • Extra-flat casing with low footprint for optimized installation in limited spaces.
  • Low-consumption casing with integrated regulation compliant with current standards.
  • All-in-one product integrating control, a fully wired coil, and a coarse ISO filter 65% (G4). Space provided for an optional second coil.
  • Optimized maintenance access: accessible electrical compartment; top and bottom inspection hatches for fan, coil and filter maintenance.
  • Reduced noise level for occupant comfort: double-skin insulated casing supplied.


CONSTRUCTION / COMPOSITION
  • Casing :
    • Inline intake/discharge.
    • Monobloc casing in galvanized steel with integrated electric or hot-water coil. Change-over and DX versions with external coil.
    • Double-skin panel 25 mm with rock wool density 90 kg/m3.
    • ISO coarse filtration 65% thickness 48 mm (G4) included as standard.
    • Circular intake/discharge spigots fitted with rubber lip seals as standard.
    • Casing equipped with clinched nuts on feet integrated into the structure.
    • Top and bottom hinged inspection hatches.
    • Universal serviceability by rotating the casing.
  • Fan :
    • Reaction turbine type Plug fan.
    • Direct coupling.
  • Motorization :
    • ECM motor (external rotor electronic commutation, high efficiency).
    • IP54 (sizes 600 to 3000), IP44 (size 5000), class F.
    • Single-phase 230 V - 50/60 Hz supply: sizes 600 to 2000.
    • Three-phase 400 V - 50/60 Hz supply: sizes 3000 to 5000.


RÉGULATION OXÉO® TOUCH3
  • Color touchscreen.
  • Wired remote control (modes: variable flow 0-10V (DCV), constant flow (CAV), constant pressure (VAV)).
  • Duct sensor.
  • Night reduced-speed program.
  • Programmable clock.
  • BMS/BAS communication.


OPTIONS
  • ISO PM10 70% filter (M5) available as an option.
  • ISO PM2.2 65% filter (F7) available as an option.
  • Painted version available on request.


START-UP SERVICE
  • Verification of the overall installation.
  • Commissioning of the unit.
  • Operational briefing at the end of the intervention.


CHARACTERISTICS / TECHNICAL SPECIFICATIONS
  • Model: Novatys Flat ECM
  • Article code: 61046317
  • Internal product ID: 79385
  • Unit type: ultra-flat supply air casing, double-skin monobloc galvanized steel
  • Insulation: 25 mm double-skin panel with rock wool, density 90 kg/m3
  • Standard filtration: ISO coarse 65% (G4), 48 mm thickness
  • Fan: reaction turbine (Plug fan), direct coupling
  • Motorization: ECM motor (high efficiency), class F
  • Protection rating: IP54 (sizes 600–3000), IP44 (size 5000)
  • Power supplies: single-phase 230 V 50/60 Hz (sizes 600–2000); three-phase 400 V 50/60 Hz (sizes 3000–5000)
  • Fluid temperature range: -25 to +50 °C
  • Installation positions: horizontal (floor or ceiling) and vertical (wall-mounted)
  • Connections: circular intake/discharge spigots with rubber lip seals
  • Maintenance access: top and bottom inspection hatches; accessible electrical compartment
  • Available options: M5 / F7 filters, painted version, hot-water or electric coil (depending on version)
  • Available sizes / configurations (examples): 600, 1000, 2000, 3000, 5000
  • Price shown (Excl. Tax): 10546.00 EUR
