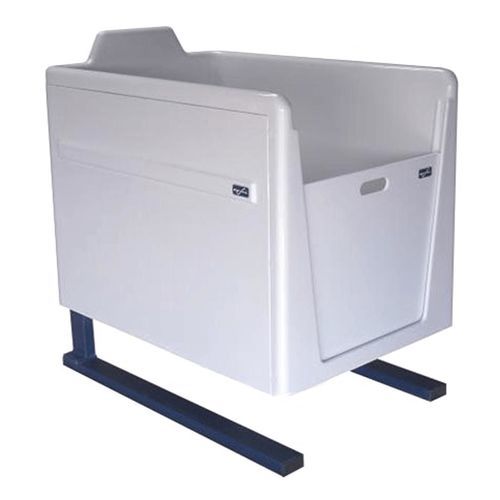

Stainless steel shower cubicle 4821.00

plasticsteelPVC

The shower cabin is designed for seated showering. The front is equipped with a removable panel to prevent water splashes outside the cabin. It can be used with the OPALE supply console. The cabin features a rail seat system and a flush system for liquid and waste evacuation if necessary. Characteristics: - Dimensions: Length 110 cm, width 78 cm, height 106 cm. - Monobloc polyester tank in white. - White polyester cladding. - Removable protective panel, white PVC. - WC-type seat, white, on stainless steel frame. - Stainless steel guide rails with locking system. - Anti-corrosion treated steel frame, epoxy paint. - Flush system, capacity: 10 liters, water supply 15/21. (model 4821.00) - Basin Ø 320mm with siphon Ø 100mm. (model 4821.00) - Siphon and flexible evacuation hose Ø 40mm. - Total weight: 76kg. Operation: The shower cabin is intended for washing the patient in a seated position. The front is equipped with a removable panel to prevent water splashes outside the cabin. The sliding seat allows easy movement of the patient within the shower cabin. The use of the OPALE wall-mounted supply console is recommended with the shower cabin. Maintenance: - Use only liquid products (liquid soap) for cleaning the tank. - Do not use abrasive products like scouring powder or cleaning cream to avoid scratching the "Gelcoat" finish of the tank. - To remove limescale deposits, it is recommended to use the descaler (Gel Servex, ref:4323). Technical Specifications: - Dimensions: 110 x 78 x 106 cm - Total weight: 76 kg - Tank and cladding: white polyester - Protective panel: white PVC - Seat: WC-type, stainless steel frame - Guide rails: stainless steel with locking - Frame: anti-corrosion treated steel, epoxy paint - Flush system: 10 L, supply 15/21 - Basin: Ø 320 mm, siphon Ø 100 mm - Siphon/flexible evacuation: Ø 40 mm
