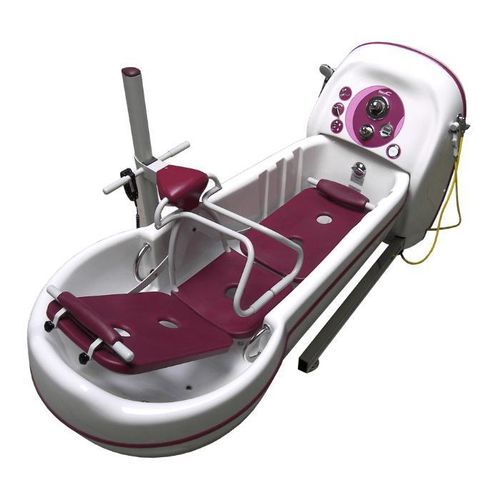

The bathtub transfer stretcher allows the transfer of a patient in a lying position to a medical bathtub, combining comfort, safety, and ergonomic use.
Key Features:
- Foot-operated height adjustment
- Polyurethane foam support for comfort, durability, and easy cleaning
- Large lifting range
- High autonomy (8Ah batteries)
- 180° foldable safety rails
- Polyurethane head and foot supports
- Rilsan-coated stretcher
- 5-position backrest inclination adjustment
The bathtub transfer stretcher includes:
Chassis:
- Anti-corrosion treated, grey color
- ABS cover, plum color
- 4 directional wheels, 2 with brakes
Hydraulic Version (5472.00):
- Stainless steel hydraulic cylinder with aluminum skirt
- Retractable foot control
Electric Version (5479.00):
- 24-volt electric cylinder
- 2-function remote control
- Emergency stop button
- Emergency descent button
- Rechargeable batteries 2×12 volts, 8Ah
- 24V, 1300mA charger with charge indicator
- Autonomy: 80 lifts/descents at 130kg
Submersible Parts:
- Waterproof steel structure, Rilsan-coated, articulated in 3 parts
- Backrest inclination adjustment by rack (5 positions)
- Polyurethane foam support
- Polyurethane foot and head supports
Technical Specifications:
- Variable height type: Electric, Hydraulic
- Available options: MATTRESS (Ref 5472.20)
