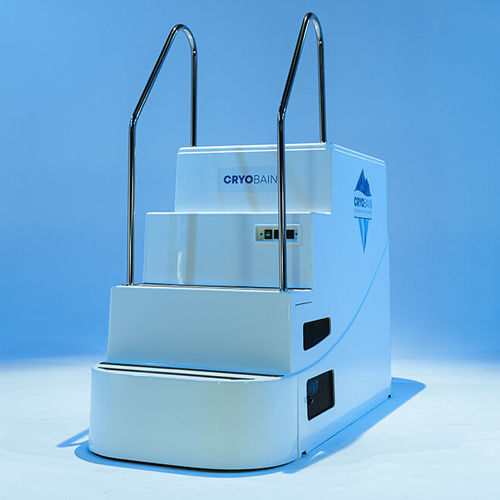

Freestanding bathtub CRYOBAIN

professionalfiberglasspolyester

Overview
Three Cryobain ice bath models have been developed to improve athlete recovery after exercise. These cold-water baths reduce post-exercise fatigue, stimulate circulation and limit muscle soreness through cold thermal shock and hydrostatic pressure.

Models

• Cryoplus: Ideal for tall users; absence of a third step saves space and improves comfort.
• Cryobain: Iconic model; adjustable immersion depth for seated, standing or full-body treatments.
• Cryoduo: Two-person standing model; teak and stainless-steel steps increase interior space so two people can stand.

Benefits

• Minimizes fatigue after intense workouts and promotes optimal recovery.
• Stimulates blood circulation and reduces muscle pain via cold-water thermal shock and hydrostatic pressure; benefits are felt long-term.

Recommended temperature and duration
Water temperature: 7–12 °C. Recommended immersion time (minutes) equals the temperature in °C (e.g., 7 minutes at 7 °C).

Technical description
General

• Made in France
• Fiberglass and polyester resin basin (no thermal loss)
• Stainless steel handrails and steps (teak option for steps on some models)
• Removable protective cover
• Integrated cooling unit and filtration
• Digital display for temperature control
• Electrical consumption: 5 A/day (maximum load)
• Gas type: R410 / TeqCO2: 1,04
• Frequency: 50 Hz
• Cooling performance: -3 °C per hour

Dimensions

• Overall dimensions (L x W x H): 190 x 80 x 120 cm
• Water height: 90 cm
• Basin capacity: 500 L
• Empty weight: 180 Kg
• Filled weight: 680 Kg

Installation

• Power supply: 230 V / 1pH / 50 Hz
• Standard water inlet for filling the pool
• Water evacuation: draining via 1/4 turn valve 1 inch at the low point
• Requires a ventilated room (condensation control)

Customization

• Choice of 3 existing configurations
• Possibility to create a custom pool (4 to 6 person pools available)
• Customize design in club colors
• Brand the outer shell with your logo
• Optional accessories: cartridge filtration

Compliance

• CE marking
• 93/68/CEE (CE marking)
• 97/23/CE (European Directive on pressure equipment - PED)
• EN 378 – parts 1, 2, 3, 4 governing refrigeration installations
• EN 13133
• N.F. EN standards
• N.F C 15-100 sections 701 and 751

Technical specifications

• Origin: Made in France
• Basin material: Fiberglass and polyester resin (no thermal loss)
• Handrails & steps: Stainless steel (teak option for steps on some models)
• Protective cover: Removable
• Cooling & filtration: Integrated cooling unit and filtration
• Temperature control: Digital display
• Electrical consumption: 5 A/day (maximum load)
• Gas type: R410 / TeqCO2: 1,04
• Frequency: 50 Hz
• Cooling performance: -3 °C per hour
• External dimensions (L x W x H): 190 x 80 x 120 cm
• Water height: 90 cm
• Capacity: 500 L
• Empty weight: 180 Kg
• Filled weight: 680 Kg
• Power supply: 230 V / 1pH / 50 Hz
• Water inlet: Standard filling connection
• Water evacuation: 1/4 turn valve, 1 inch, at low point
• Installation environment: Ventilated room recommended for condensation control
• Configurations: 3 standard configurations; custom pools (including 4–6 person) available
• Branding & customization: Color, outer-shell logo and design customization available
• Optional accessory: Cartridge filtration
• Applicable standards: CE, 93/68/CEE, 97/23/CE (PED), EN 378 (1-4), EN 13133, N.F. EN, N.F C 15-100 (sections 701 & 751)
