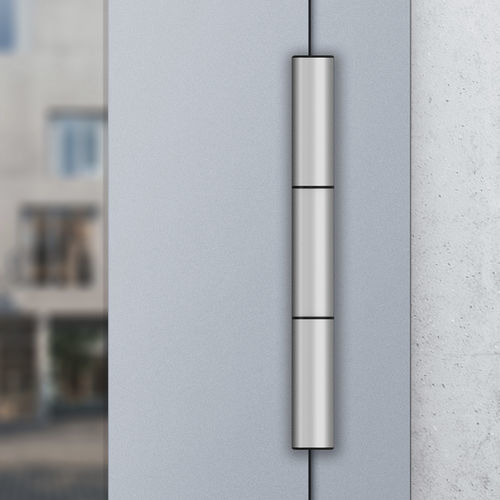

Door hinge Solid B | 324 A

three-leafhomecontemporary

Three-part butt hinge for aluminium doors • For main doors, back doors and balcony doors up to 160 kg • Appearance stays the same regardless of the hinge setting thanks to internal adjustment mechanism • Rapid and simple installation • Slim butt hinge design with a diameter of 24 mm Aluminium clamp hinge with the appearance of a butt hinge. The adjustment mechanism integrated in the hinge roller enables continuous adjustment without offset outlines. Butt hinges are very popular thanks to their slim hinge design. This means that they blend harmoniously into any door. A wide range of colours and different coating methods offer a lot of freedom for an individual design. Alongside the visual advantages, Roto Solid B | 324 A also impresses during installation and adjustment. A particular highlight is the adjustment mechanism integrated in the hinge roller. It ensures a consistently attractive appearance regardless of the setting, as it produces neither gaps nor axis offset. Clamping blocks on the sash hinge and a clamping plate on the frame hinge guarantee rapid and simple installation. The hinge fixing can be adapted to the system-specific groove of the aluminium profile. This enables system-adapted versions to be produced for any door upon request. Design • Slim butt hinge design with a diameter of 24 mm • Appearance stays the same regardless of the hinge setting • Available in various RAL colours and electrolytically anodised surfaces • Custom coating possible
