Aluminum hardware kit INLINE

stainless steelzincPVC

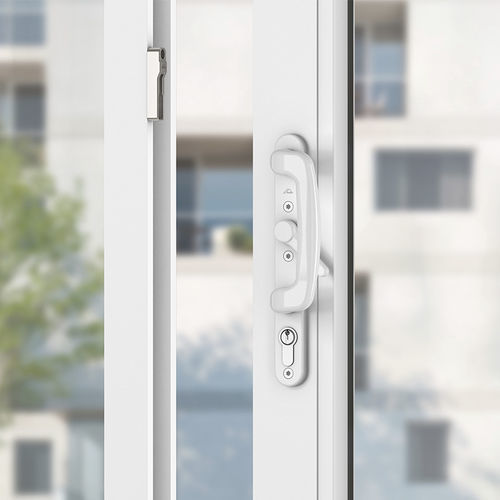

The modular Roto Inline hardware system for timber, PVC and aluminium profiles enables windows and balcony/terrace doors with sash weights of up to 200 kg to be pushed to the side comfortably and practically. The completely concealed Roto Inline hardware with its multi-point locking system impresses by offering many advantages, and thanks to its modular principle, it permits many different design possibilities: All components can be combined with each other easily and without any problem, fully in line with individual security, comfort and design requirements. Whether with mushroom cams, hooks or swing-hooks, lockable or not – choose the multi-point locking system that best suits your security requirements. Espagnolette Single-action espagnolettes consist of just one component and so are very easy to install. They are fitted as standard with an integrated ant-jemmy protection pin and offer different possibilities for the locking points: 8 mm adjustable mushroom cams 5 mm and 14 mm hooks, and also 8 mm night ventilation hooks Reverse-action espagnolettes provide additional security by locking in the reverse direction. The possibilities for the locking points are: 5 mm and 14 mm hooks Claw hooks All surfaces are Roto Sil-coated and thus have a matt silver stainless steel appearance. Roller units Robust and sturdy roller units allow sliding sashes to run evenly and smoothly. Single and tandem roller units are available for different weight classes up to 200 kg. The single roller unit up to 50 kg sash weight with a diecast zinc casing fits most standard tracks and more than one of them can also be used interconnected for heavier sash weights.
