Profile cylinder (PC) and blank keyways
Centres 72 + 92 mm
Installation depth 23 mm
Frame height 25 mm
For combination on opposite face with FSB AGL@ rose or backplate half-set, turnably fixed variant (must be ordered separately)
Corner radius 8 mm
In the case of backplate variant PC 92 mm, through-fixing is only possible underneath the handle bushing.

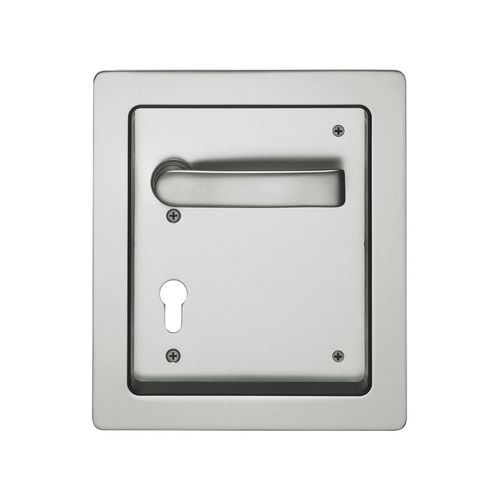

Pictured: right-hand model
