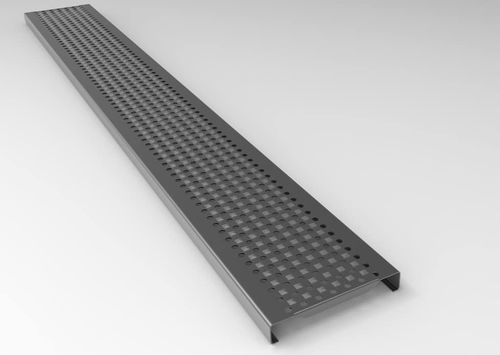

Stainless steel grating for drain channel PERFORATEDfor public spacesfor industrial applications
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Applications
- for public spaces, for industrial applications
Description
Width: 50 to 400 mm
Height: 20 / 25 / 30 mm
Length: 999 / 499 mm
Resistance: A 15 – UNI EN 1433/2008
Thickness: 1 / 1.25 mm
Edging: “C” shaped
No. holes: Min 288 – Max 2160
Hole diameter: 6 mm
Mounting: HOLES
Absorption surface: 81 / 610 cm2
No. non-slip bosses: Min 284 – Max 2130
Appearance: OPAQUE / GLOSSY
Weight: 1.34 kg
MATERIAL: Galvanised – AISI 304/316 stainless steel
