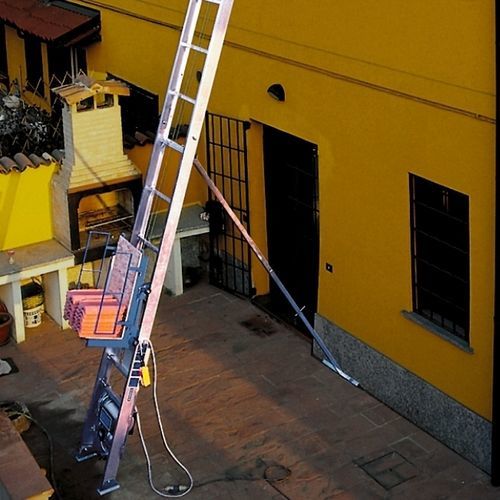

Commercial freight elevator SOL

for construction site

Max reachable height 23.80 m Load capacity up to 199 kg. 220 V electrical power supply • Climbing ramp created completely in aluminium built of upright tubing in finned profile joined to square tubing spaced every 50 cm. • Robust connection between the various extension elements with reinforced bayonet coupling and locking using bolts and eyebolts • Lifting unit with 50 m steel cable winding with anti-loosening system of the cable • Lifting using monophase electric motor 230V/50Hz with 1.1 KW, absorbed power of 9A and speed of 25 m./min • Braking system composed of monophase electric gearmotor in oil bath with limit switch in ascent and descent. • Compact sized control panel with three-command 24V activation keypad with electric cable measuring 3 m. • Compulsory cross piece supplied over 8 m. extension • Use and maintenance manual • CE certified Lifts every type of materials, CE certified, Fall-prevention safety device with automatic stoppage in case rope breaks, Braking system with monophase electric gearmotor also indicated for removals, avoiding furniture kickback, Ideal for lifting photovoltaic panels
