The concept

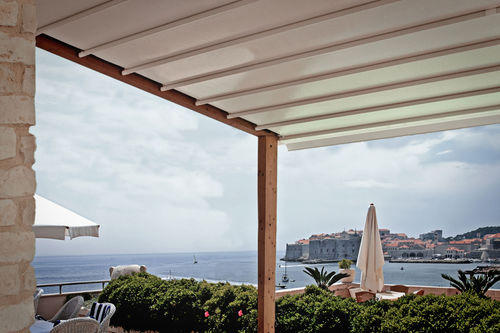

Sanremo Patio, with the practicalness and the simplicity of its line, revises the concept of roofing for big spaces. The main structure, entirely realized in aluminium with a retractable blackout pvc roofing protects the area underneath from the sun and from the rain. Sanremo Patio can be fitted onto an existing structure in wood, steel or masonry the water drop is warranteed with a minimum slope of 15%.
Technical informations
Extruded aluminum profiles, primary alloy UNI 6060, 70hb hardness in T6 state, thermal treatment co in the oven at 180 °C.
Epoxy powder coating resin polyester, UV-resistant, with pre- treatment to phosphochromate.
Pulleys in Nylon 6 degrees loaded with glass fiber;
Stainless steel pins and drive belt polyurethane reinforced with steel.
PVC fabric Precontraint blackout, flame retardant Class 2, sealed, delivered pre-assembled on profiles cloths. The fabric underneath the roof is produced in Tempotest Light.
