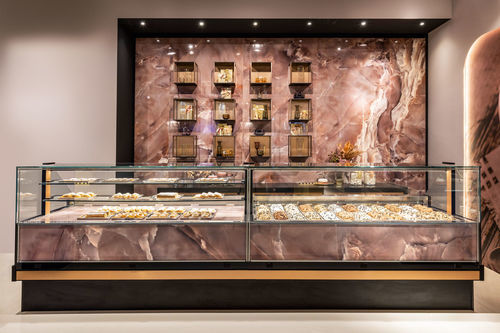

Counter refrigerated display case EVOLUTION

for pastry shopsfor shopaluminium

Description
Maximum visibility and controlled preservation. Evolution is a professional refrigerated display case for gelato and pastry shops, engineered to showcase products with a large display area and lighting designed to enhance colours and details. It combines advanced refrigeration technology with a modern aesthetic to serve as a focal point in the premises.

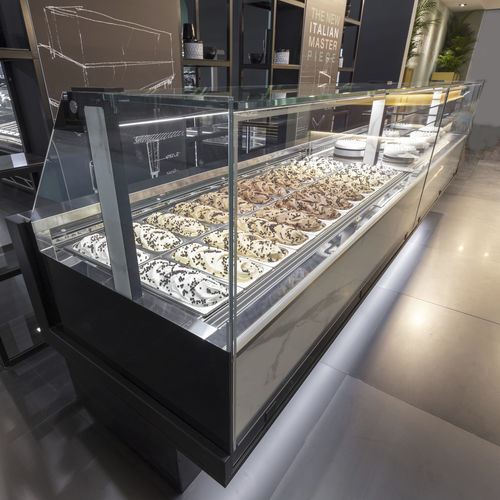

Gelato version – Main features
The gelato version is designed to display and preserve gelato in pans at negative service temperature. Monobloc foamed body with injected polyurethane (38/40 kg/m3) internally lined in stainless steel. Base in epoxy powder-coated tubular steel with adjustable feet.

Glass and openings
Side glasses are laminated, tempered and heated; the front glass is tempered and heated, opening downwards; top glass is extra-clear for sharp visibility. Glass heating reduces condensation to keep the display clear even at negative temperatures.

Service and replenishment
The front glass opens downwards to facilitate service and pan replacement. On the operator side closure can be a roll-up curtain or inclined sliding doors depending on the configuration; both solutions protect the product and limit thermal shocks during loading.

Refrigeration and defrost
Automatic defrost by cycle inversion, programmed to manage frost without manual intervention. In versions with internal motor, condensate water evaporates automatically; an evaporating condensate tray is available on request. For remote condensing units condensate discharge must be connected to the sewer network.

Drive options
Available with internal or remote motor. Internal condensing units are hermetic single-phase as standard; external units supplied on request. Choice depends on available space, noise considerations, heat management in the room and distance between the display case and the external unit.

Finishes and customisation
Front and sides can be lacquered in RAL shades or catalogue colours. Side uprights in black anodised aluminium prepared for insertion of laminates up to 2 mm thick.

Lighting
Display area lighting with high-brightness LEDs for uniform colour rendering, low consumption and low thermal load, enhancing the colours and textures of the displayed product.

FAQ – key information

• What it is: professional refrigerated display case for gelato and pastry, to preserve gelato in pans with monobloc foamed body and stainless steel lining.
• Available heights and widths: two heights (H 120 and H 137 cm) and three nominal widths (1150, 1650, 2150 mm). Overall width with sides: 123 / 173 / 223 cm.
• Pan formats supported: 360x165x120 mm (capacity 24 / 18 / 12 depending on width) or 360x250x80 mm (capacity 16 / 12 / 8). Pan kit not included.
• Materials: structure in stainless steel and anodised aluminium; body in injected polyurethane 38/40 kg/m3; internal lining in stainless steel; base in epoxy powder-coated tubular steel with adjustable feet.
• Glasses: side glasses laminated, tempered and heated; front glass tempered and heated, opening downwards; top glass extra-clear.
• Defrost: automatic by cycle inversion; automatic condensate handling in versions with internal motor.
• Climate class and temperatures: climate class 4 (referenced to 30 °C and 55% RH); temperature class G1 = -10 °C / -14 °C; compliant with UNI EN ISO 23953-2:2016.
• Condensing units: for model 12G hermetic single-phase unit within 10 m and semi-hermetic three-phase beyond 20 m; for models 18 and 24G semi-hermetic three-phase units within 20 m (configuration depends on power, distance and layout).
• Condensate management: automatic evaporation with internal motor; with external motor condensate discharge must be connected to sewer; evaporating tray available on request; front grille not supplied on raw versions and with external motor.
• Aesthetic customisation: RAL lacquers or catalogue colours available; side uprights ready for laminates up to 2 mm.

Technical characteristics / specifications

• Commercial model: Evolution
• Type: refrigerated display case for gelato and pastry
• Available heights: 120 cm, 137 cm
• Nominal widths: 1150 mm, 1650 mm, 2150 mm (overall width with sides: 123 / 173 / 223 cm)
• Supported pan formats: 360x165x120 mm and 360x250x80 mm
• Capacity (by width): for 360x165x120 → 24 / 18 / 12 pans; for 360x250x80 → 16 / 12 / 8 pans
• Insulation: injected polyurethane 38/40 kg/m3 (monobloc foamed body)
• Internal lining: stainless steel
• Structure: stainless steel and anodised aluminium
• Base: epoxy powder-coated tubular steel with adjustable feet
• Glasses: side laminated, tempered and heated; front tempered and heated opening downwards; top extra-clear glass
• Lighting: high-brightness LEDs
• Defrost: automatic by cycle inversion
• Climate class / service temperature: Class 4 (30 °C / 55% RH); Temperature class G1 = -10 °C / -14 °C (UNI EN ISO 23953-2:2016)
• Drive options: internal motor (internal hermetic single-phase unit standard) or remote motor (units on request); options and sizing depending on distance and model (12G/18/24G)
• Condensate management: automatic evaporation with internal motor; sewer discharge required for external motor; evaporating tray available on request
• Finishes: RAL lacquers or catalogue colours; side uprights in black anodised aluminium, prepared for laminates up to 2 mm
• Accessories/Notes: pan kit not included; front grille not supplied on raw versions and with external motor
