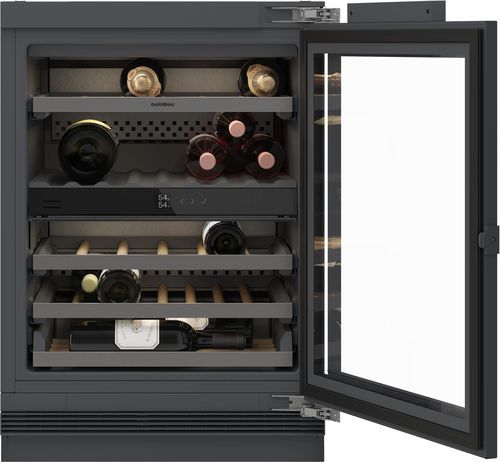

Multi-temperature wine cabinet 200 series

commercialintegratedoak

Product description This 200 series wine climate cabinet (23.5'') provides precise storage for up to 38 standard 0.75 l bottles. It offers two independent, continuously variable temperature zones with electronic precision control, humidity management and UV protection to preserve wine quality.

Features

• Two individual temperature zones, both continuously variable
• Consistent temperatures with exact control from 41 °F to 68 °F
• Humidity control
• Extendable bottle trays made of oak wood and aluminium
• Adjustable LED lighting
• Soft-closing system for a controlled door closure
• Capacity 38 bottles (based on 0.75 l standard bottles)
• Side-by-side installation possible with special accessory
• Electronic precision temperature control with digital temperature display
• Touch keys
• Presentation light option, dimmable
• Interior LED lighting (3000 K) with automatic dimming with opening and closing of door
• Lockable door (with door lock RA 220 010)
• Dynamic cold air distribution with Multi-Flow Air System
• Automatic defrosting with defrost
• Water evaporation
• Constant air purification by activated charcoal air filter in each climate zone
• UV protection (UV transmission: 19 %)
• Sabbath mode certified by Star-K
• Open-door and malfunction warning system
• 5 bottle trays, 4 of which are extendable
• Storage of Magnum bottles possible (up to 4 Magnum bottles)
• LED lighting
• Total volume: 4.6 cu. ft.
• Energy consumption 100 kWh/year
• Noise level 38 dB (re 1 pW)
• Flat hinge
• Door hinge right, reversible
• Height-adjustable feet
• Door opening angle of 115°, fixable at 90°
• Max. door panel frame weight 22 lbs (10 kg)
• For integration next to a side wall a clearance of 7 mm/238 mm hinge side is necessary for door panel thickness of 19 mm without handle and a door opening angle of 90°/115°
• No transport/operation above 5,000 feet (1.500 m) sea level
• Total rating 0.09 kW
• Connecting cable 59" with ground plug

Technical specifications

• Series: 200 series
• Product ID: RW204770
• Capacity: 38 bottles (0.75 l standard bottles)
• Total volume: 4.6 cu. ft.
• Temperature range: 41 °F to 68 °F
• Temperature zones: 2 independent, continuously variable
• Lighting: Interior LED (3000 K) with automatic dimming; adjustable LED lighting; presentation light option, dimmable
• Bottle trays: 5 trays, 4 extendable; extendable trays made of oak wood and aluminium
• Magnum storage: up to 4 Magnum bottles
• Air system: Multi-Flow Air System; activated charcoal air filter in each climate zone
• UV protection: UV transmission 19%
• Sabbath mode: certified by Star-K
• Defrosting: Automatic defrosting with defrost
• Noise level: 38 dB (re 1 pW)
• Energy consumption: 100 kWh/year
• Electrical rating: Total rating 0.09 kW; connecting cable 59" with ground plug
• Door: Soft-closing; lockable (with door lock RA 220 010); door hinge right, reversible; flat hinge; max door panel frame weight 22 lbs (10 kg)
• Installation notes: Side-by-side installation possible with special accessory; clearance of 7 mm/238 mm hinge side required for door panel thickness 19 mm without handle; no transport/operation above 5,000 ft (1,500 m)
• Controls: Electronic precision temperature control with digital temperature display; touch keys
