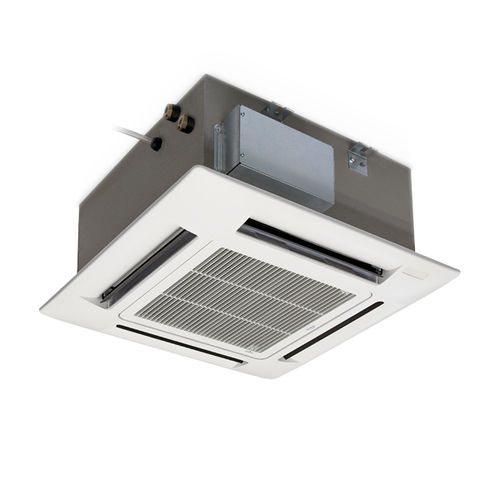

AQi cassette fan coils with BLDC electronically commutation (GreenTech) motor, recess ceiling-mount, integrated condensate drainage pump, grille RAL9003, RAL 9010, or new EFFETTO design module.
Permanent magnet BLDC motor insures a precise, continuous control of operation
GreenTech Technology (models 10/30)
Low energy consumption
Condensate drainage pump for height differences of up to 0.9 m
Fresh air with direct or mixed introduction
PIC valves for reduced commissioning and time costs
Controls with touch panels or APP
6 models for 2 pipes system
4 models for 4 pipes system
BLDC motor
RAL 9010 grille
RAL 9003 grille
The new series of hydronic cassette units ACQVARIAi, with inverter-controlled permanent magnet BLDC motor, consists of six models (10-20-30-40-50-60) for 2-pipe systems and four models (10-30-40-60) for 4-pipe systems.
The engineering of the unit makes it possible to develop up to 5 kW in the cooling mode in a standard 600x600 mm modular suspended ceiling and over 10 kW in the 860x860 mm modularity, with exceptionally low noise levels in the phases for maintaining interior comfort. The well-known advantages of BLDC motors are combined with GreenTech technology (in models 10, 20, and 30), which integrates the inverter directly into the fan drive assembly.
ACQVARIAi leverages the entire Galletti, MYCOMFORT, EVO , and TED10 microprocessor controller platform that incorporate sophisticated adjustment logics based on air temperature, air humidity, and water temperature.
