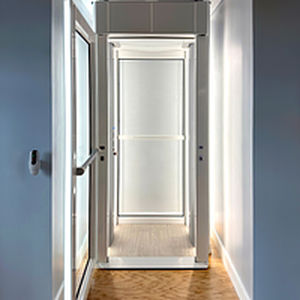

Electric elevator LUMA HOMELIFT

homewith LED lightwith ventilation system

Luma Homelift is a compact home lift designed to connect two floors with minimal building work and discreet integration into existing interiors. It does not require a structural shaft or invasive masonry, making it suitable for retrofit projects and spaces with limited structural modifications.

Installation
Delivered pre-assembled and floor-mounted: typical installation requires only an opening in the ceiling and can be completed in 1–2 working days. Local electrical adaptation may be needed to provide the power supply.

Main features and benefits

• Plug & play installation: no pit or machine room required, reducing on-site works.
• Self-supporting guide system allowing flexible siting within the building.
• Transparent, light-enhancing design with acrylic panels and integrated LED lighting to preserve interior aesthetics.
• Accessible entry: inclined platform and non-slip flooring for safe and easy access.
• Quiet operation with low energy consumption.

Technical details (table)

• No pit: floor-mounted installation, no pit required.
• Drive system: winch drive with man-present control.
• Compact and quiet: slim footprint; operating sound level ~55 dB.
• Design: acrylic panels and integrated LED lighting.
• Fast installation: typically ready in 1–2 days.

Safety

• Emergency stop button and alarm.
• Obstacle detection sensors.
• Speed limiter.
• Door locking system.
• Certification compliant with applicable standards.

Other equipment and components

• Self-supporting guide system for smooth cabin travel.
• Automatic upper landing cover supplied for safety at the upper level.
• Integrated cabin ventilation for air renewal.
• Acrylic panels to ensure a bright, airy cabin.
• LCD display for status and fault indication.
• Cab controls with illuminated buttons and integrated call function.

Technical specifications / characteristics

• Installation: pre-assembled unit, floor-mounted; typical time 1–2 days.
• Power and consumption: designed for low energy consumption; automatic recharge when idle.
• Autonomy on power loss: capable of completing up to 5 cycles (10 movements).
• Operating noise: approximately 55 dB.
• Main materials: acrylic panel walls, integrated LED lighting, non-slip floor.
• Drive: winch with man-present control.
