Metal guard rail Parapet

streetfor bridge construction

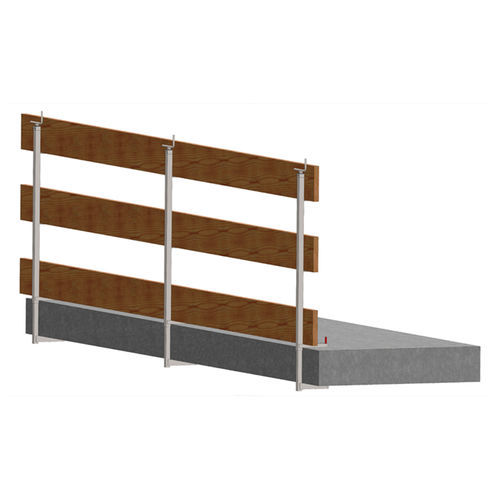

Fall protection device suitable for horizontal, vertical and planes with variable inclination. This support, thanks to its characteristics of ductility and reversibility, is used on surfaces with variable inclination. This standard guardrail post with clamp, regulated by inner threaded rod, is suitable for securing flat or inclined surfaces (up to 10°). Anti-fall support 100 cm high. Distance between the railings of 160 cm. Weight of the product 5 kg. GBM is a leading company in Europe in the production and distribution of temporary edge protection systems, paying particular attention to international technical standards and certifications, supplying prestigious leading companies in the construction industry all over the world. The international technical standard EN 13374 : 2013 identifies three classes of protection, depending on the inclination of the working surface. Class “A”: inclination up to 10° (≈17,63 %); Class “B”: inclination up to 30° (≈57,73%) or up to 60° (≈ 173,2 %) if the falling height is less than 2 meters; Class “C”: inclination up to 45° (=100%) or up to 60° (≈ 173,2% ) if the falling height is less than 5 meters. All GBM’s parapets are produced and certified in compliance with international technical standards and even customized solutions can be designed, manufactured and certified.
