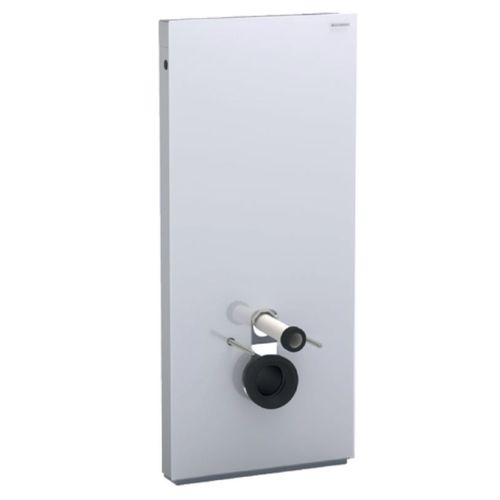

Wall-mounted toilet installation unit 131.031.SI.5

with toilet tank

Water supply connection set with 2 angle stop valves, 1/2" Flush bend extension 160 mm Sleeve made of EPDM, ø 44 / 55 mm Straight connector made of PE-HD, ø 90 mm Adaptor socket made of PE-HD, ø 90 / 110 mm 2 threaded rods M12 Sound insulation set Base cover Fastening material for drywall Fastening material Fastening material for installation in front of concealed cisterns • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing low-level exposed cisterns • For replacing half-high level exposed cisterns • For replacing wall-hung WCs with close-coupled exposed cistern • For replacing wall-hung WCs with pressure flushing valve • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For Geberit AquaClean WC complete solutions • For connecting Geberit AquaClean WC enhancement solutions, with accessories • For mounting on finished floors • For installation in front of drywalls or solid walls • For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
