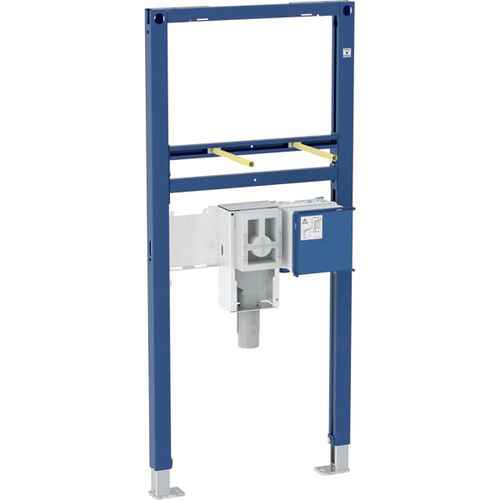

For Geberit washbasin taps Piave and Brenta
Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
For drywall construction
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For installation in part- or room-height Geberit Duofix system walls
Suitable for less-abled installation
For installation of washbasins
For Geberit washbasin taps Piave and Brenta, deck-mounted, with concealed function box
For floor constructions 0–20 cm
Self-supporting frame, powder-coated
Frame with ø 9 mm drilling holes for fastening in wood frame construction
Galvanized feet
Feet adjustable 0–20 cm
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Fastening distance for washbasin 5–38 cm
Concealed trap with optimum flow guidance and high self-cleaning effect
Concealed trap can be height-adjusted ± 3 cm during final installation
In-wall cabinet with straight connector made of PP, ø 50 mm
Water supply connection compatible with MasterFix and MeplaFix
Water supply connection on the bottom of concealed housing
Fastening for connection bend, height-adjustable and sound-absorbing
Concealed housing for Geberit washbasin tap, deck-mounted, for concealed function box, premounted
Shut-off unit integrated in the concealed housing
Terminal for electrical connection in concealed housing
2 wall anchors
Protection box
2 threaded rods M10
Protection box with cover, for concealed housing
Fastening material
