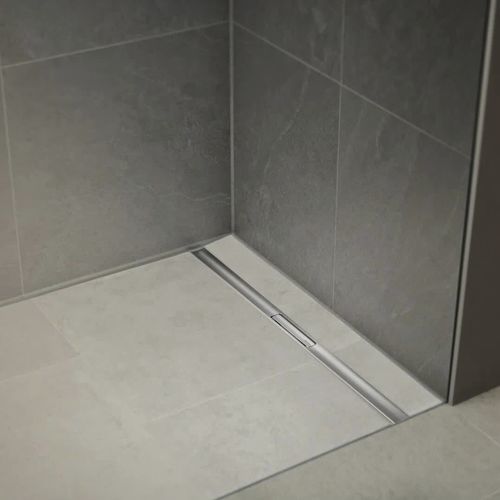

Stainless steel linear shower drain CLEANLINE30

brushed stainless steelprefabcontemporary

Product description
The Geberit CleanLine30 shower channel in high-quality stainless steel features clean lines, a narrow profile and contemporary design. At only 43 mm cover width it integrates discreetly into any shower area. The slim cover profile provides a refined appearance and incorporates an integrated hair strainer and a tilt function: the cover can be lifted with a fingertip and removed without tools.

Functions and advantages

• Slim cover profile: refined appearance, easy fingertip removal (tilt function).
• Integrated hair comb/strainer under the cover to protect against blockages and simplify cleaning.
• Flush-to-floor installation: level, almost uninterrupted walking surface.
• Design variants: available in brushed stainless steel and black finish.
• Easy installation: complete installation set with pre-assembled, permanently molded waterproofing membrane for secure sealing.
• Cut-to-length: profiles can be shortened laterally to fit the installation situation.
• Anchoring for secure hold in the floor and wave-shaped / flow-optimized siphon for fast drainage.

Additional product features
Flexible positioning of the drain body for clean separation of trades; flow-optimized siphon; base body can be positioned freely; the profile can be integrated into the floor like a tile, making it tile-layer friendly.

Characteristics / technical specifications

• Model: CleanLine30
• Material: high-quality stainless steel
• Cover width: 43 mm
• Cover: slim profile with tilt function, removable by fingertip
• Hair strainer: integrated (hair-comb insert under the cover)
• Installation: flush-to-floor; profile can be cut laterally
• Delivery / mounting: complete installation set with pre-assembled waterproofing membrane
• Finishes / design: brushed stainless steel and black
• Siphon: wave-shaped / flow-optimized siphon
• Fixing: anchoring for secure hold in the floor
