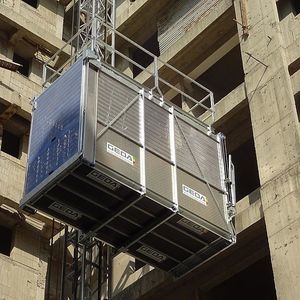

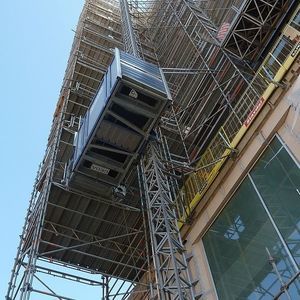

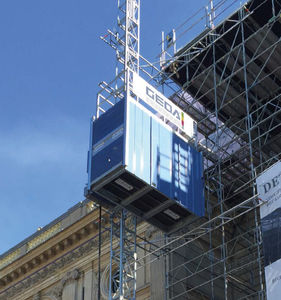

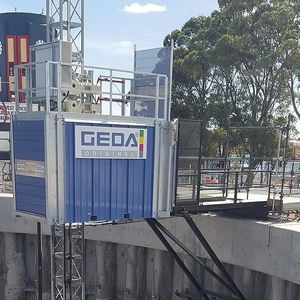

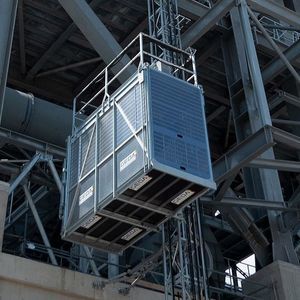

Construction site freight elevator PH 2032

for heavy loads

The passenger and material hoists from the GEDA PH range meet the demands for high load capacities and great lifting heights. The “smallest” among the three GEDA PH models, the GEDA PH 2032, offers a spacious 1.55 x 3.20 m platform for up to 25 passengers or materials with a total weight of 2000 kg. With a lifting speed of 90 m/min, controlled by a frequency converter, the GEDA PH 2032 reaches a lifting height of up to 400 metres. The frequency converter enables smooth starting and stopping with a low start-up current, which significantly reduces wear on the gear rack and the motor pinion. The standard controls for landing pre-selection, automatic mode or fully automatic mode can be selected individually for each model from the GEDA PH series. Different door systems in combination with the suitable requested electrically/mechanically locking landing level doors complete the profile of the PH range. The GEDA PH 2032 is available as a single-car version or as a double-car version. GEDA POWER GREASE The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges. Cargo - Persons and material Mast system - GEDA PH-MAST Load capacity (material) - 2000 kg Load capacity (persons) - 25 Persons Lifting height - 400 m Lifting speed - 90 m/min Platform dimension - 1.55 m x 3.2 m x 2.1 m
