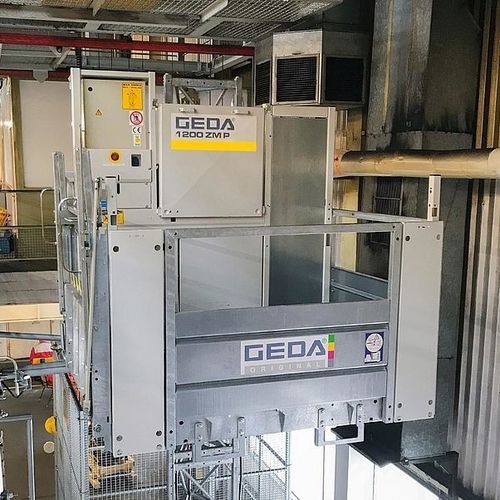

Heavy load freight elevator 1200 ZM P

for construction siteindustrial

Whenever heavier loads need to be transported, the GEDA 1200 ZM P material hoist is a practical and efficient transportation system. The GEDA VARIO-MAST system is easy to assemble directly from the platform up to an installation height of 100 m. The easy-to-handle 1.5 metre high steel mast with captive screws and secured nuts can be quickly set up without the assistance of a crane. Despite the high load capacity of 1500 kg the transport platform is guided on only one mast. The transportation of bulky goods is no problem due to the spacious and upward opening loading platform. The GEDA 1200 ZM P has three different platform variants and can therefore be easily adapted to on-site conditions. For a limited number of instructed users, the GEDA 1200 ZM P can be installed on machines and on buildings in non-public areas. A separate TÜV acceptance is not required. GEDA Corrosion Protection The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life. GEDA POWER GREASE The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges. Cargo - Material Mast system - GEDA VARIO-MAST Load capacity (material) - 1500 kg Lifting height - 100 m Lifting speed - 9 m/min / 12 m/min / 24 m/min Power supply - 2 x 3 kW / 6.1 kW / 400 V / 50 Hz / 32 A
