Electronic lock PIVOT™
key cardremote-controlledRFID

Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 2
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 3
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 4
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 5
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 6
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 7
Electronic lock - PIVOT™ - GEKIPS - key card / remote-controlled / RFID - image - 8
Add to favorites
Compare this product
Go to the GEKIPS website for more information

Characteristics

Mechanism
electronic
Opening system
RFID, keyless, remote-controlled, key card
Product applications
door, for furniture, furniture
Number of locking points
multipoint
Market
for hotel, for public building, for office, for public space, for spas, for hospital, tertiary, locker room, for sports facility, for restaurant, shop, for healthcare facility, for library
Installation
built-in
Material
other materials
Other characteristics
high-security, keyless, for indoor use

Description

Overview

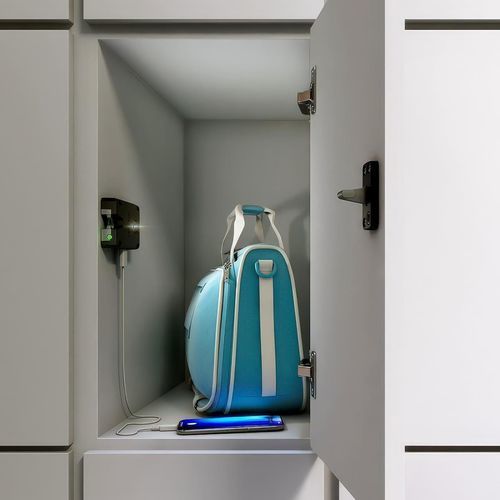

The Pivot™ wired locker lock system is a cabled electronic locking solution designed for fixed installations such as lockers or office furniture requiring managed storage access. The system provides centralized administration and flexible access modes for corporate, educational, governmental and healthcare environments. Management is provided via the DigiLink® cloud platform.

Main use
Wired access hub for lockers/storage furniture with centralized control via DigiLink®.

Access modes
  • Two primary access modes: direct RFID at the lock (card, mobile) or touchscreen kiosk interface.
  • PIN entry available via central kiosk or local keypad on Pivot Pro model.
  • Mobile credential support for smartphone-based access.


Visible elements and integrated equipment
  • External LED indicating locker availability/status (red/green).
  • Internal LED for compartment illumination.
  • Internal USB-A port for charging mobile devices inside the secured compartment.
  • Hook latch enabling push-to-open operation for handleless doors.


Access options — supported standards
  • RFID 13.56 MHz compatibility including HID™ iCLASS™, MIFARE®, FeliCa, LEGIC Advant and HID™ SEOS™.


Installation and compatibility
  • Wired installation: power and data over a single RJ45 cable for simplified integration.
  • Mounting: compatible with all door materials including metal and with all door thicknesses.


Compliance and certifications
  • Certifications: IC, FCC, CE and BIFMA ensuring compliance with international standards.


Management and administration
  • Managed via the DigiLink® cloud platform for centralized administration of access and locker configuration.


Technical specifications
  • Wired installation: power and data over a single RJ45 cable.
  • LED indicators: external status LED and internal compartment illumination LED.
  • Internal USB-A port for device charging within the secured compartment.
  • Hook latch: push-to-open mechanism for handleless doors.
  • Access options: RFID (13.56 MHz: HID iCLASS, MIFARE, FeliCa, LEGIC Advant, HID SEOS), mobile credentials, numeric keypad for PIN (kiosk or Pivot Pro lock).
  • Mounting: compatible with all door materials and thicknesses.
  • Management: centralized administration via DigiLink® cloud platform.
