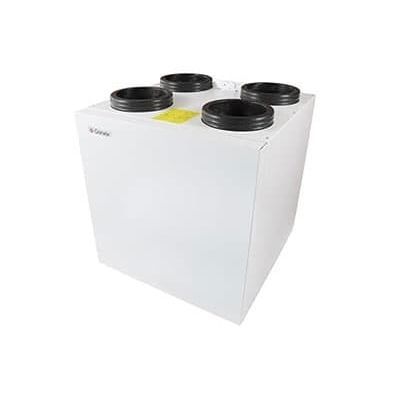

Residential ventilation unit ECO 360 R

for homeClass Acompact

ECO 360 R is a ventilation system with a heat recovery rate of up to 86%. In addition to heat recovery, the ECO 360 R has a special rotary heat exchanger that recovers moisture from the extract air so the humidity in the home remains optimal. The humidity and heat recovery is monitored and automatically adapts to the current needs. ECO 360 R is ideal for installation in buildings where space is limited. The ventilation system is very compact, with an installation height of only 60 cm. Similarly, the ECO 360 R is particularly suitable when the plumbing installation is difficult to access, as the ventilation system does not need condensate drains. ECO 360 R is equipped with a rotor stop function, which allows you to cool your home passively (electricity-free) during summer. The rotor stop function allows the cooler outdoor air to be supplied directly into your home. ECO 360 R can be used for both right or left installations (supply air on either right or left side) and is by default supplied with coarse (G4) filters in the fresh air and extract air duct (ePM2.5 (M5)/ePM1 (F7) filter is supplied as an accessory). Despite its very compact design, the ECO 360 R is an energy-efficient ventilation system with low energy consumption and a high degree of heat recovery that can also supply sufficient air to the largest of homes. In addition, the main advantages of the ECO 360 R are: Modulating humidity and heat recovery, which adapts to current needs and provides an optimal indoor climate. Energy optimisation meeting the stringent requirements of the net zero energy requirements. Extremely compact and easy installation.
