Stone veneer SEGRÈ P50

wall-mountedfor interiordecorative

Overview
The Segrè P50 is a manufactured stone veneer element designed for external and internal wall cladding. Its specific shape and colours are intended for dry-fit installations and ensure visual continuity when used alone.

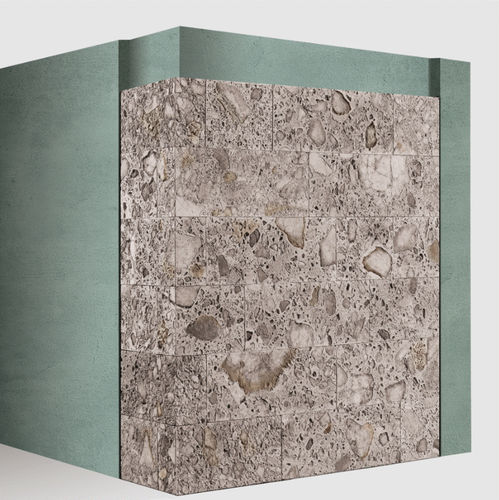

In the photograph

• Model: Segrè
• Model code: P50
• Colour shown: GRIGIO CHIARO

Sizes

• Height: 25 cm (approx.)
• Flat piece lengths: 32 cm, 50 cm, 65 cm (approx.)
• Corner lengths — long side: 32 cm, 50 cm, 65 cm (approx.)
• Corner length — short side: 14 cm (approx.)

Thickness

• 3 cm (approx.)

Shades / Palette

• grigio chiaro (code: GC)
• marrone (code: M)

Installation

• Dry-Stack Joint
• Dry installation only

Notes

• The P50 Segrè model, due to its shape and colour, must not be mixed with other models in the collection.
• Dimensional tolerance on all sizes: approximately ± 3 mm.

Technical specifications

• Model name: Segrè
• Model code: P50
• Collection: Design-Castle
• Available shades: 2 (grigio chiaro - GC; marrone - M)
• Height: 25 cm (approx.)
• Flat piece lengths: 32 / 50 / 65 cm (approx.)
• Corner lengths (long side): 32 / 50 / 65 cm (approx.)
• Corner length (short side): 14 cm (approx.)
• Thickness: 3 cm (approx.)
• Installation type: Dry-Stack Joint (dry installation only)
• Dimensional tolerance: ± 3 mm (approx.)
• Important: Do not mix this model with other models in the collection
