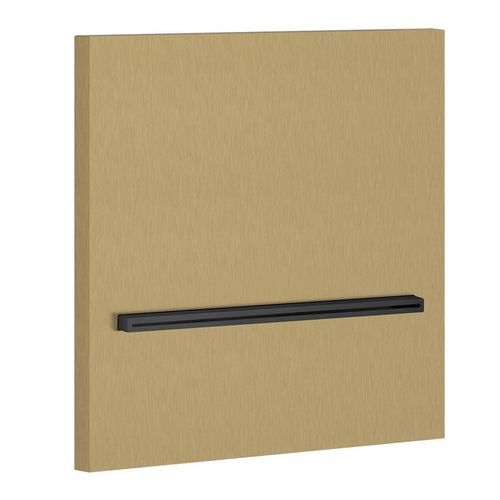

Wall-mounted shower head 20295

recessedrectangularwaterfall

Product description
Wall-fixing cascade shower spout to be completed with separate control (not included). Designed for wall installation in architectural and commercial washrooms.

Available finish

• 726 - warm bronze br. pvd

Technical features (summary)
Presence of water supply connections: Yes
Connection hoses: No
Height: 200 mm
Width: 200 mm
Depth: 17 mm
Water point presence: Yes
Customizable product: No

Downloads (available items — names and file types only)

• 2D Model - DWG (zip - 17 KB)
• Technical Drawing inch - PDF (pdf - 0.12 MB)
• Warranty (pdf - 0.26 MB)
• Flow diagram (jpg - 0.05 MB)
• Installation Instruction (pdf - 1.81 MB)
• 3D Model - DXF3D (dxf - 0.63 MB)
• 3D Model - IGS (igs - 2.3 MB)
• Technical Sheet (pdf - 0.4 MB)

Certifications
MASS, CSA recognized

Characteristics / technical specifications

• Type: Wall-fixing cascade shower spout
• Model / Code: 20295
• Height: 200 mm
• Width: 200 mm
• Depth: 17 mm
• Presence of water supply connections: Yes
• Connection hoses: No
• Water point presence: Yes
• Customizable product: No
• Available finish example: 726 - warm bronze br. pvd
