Box awning NIVO

with postmotorizedcommercial

Product overview

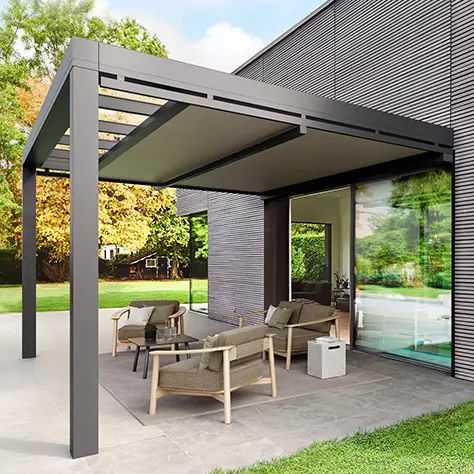

NIVO by Gibus is a tensioned horizontal screen designed to protect pergolas, verandas, skylights and glazed roofs from sun and weather. The system integrates a tensioning mechanism and ZIP side guides to ensure stable fabric guidance and long-term performance.

Advantages

• Standard motorized operation for simple, reliable use.
• Fabric stored and protected inside a box for durability.
• Integrated tensioning and ZIP guides provide stable performance even on low pitches.
• Discreet architectural integration for glazed roofs and lightweight structures.

Configurations
NIVO adapts to skylights, verandas and low-pitch installations. Available configurations include suspended (under existing structures), supported (fixed above when underside fixing is not possible) and pergola version NIVO+ with front legs to create independent shaded areas.

Installation options
Designed for installation under or above existing glass roofs and skylights. Suspended version integrates discreetly below frames; supported version secures to upper surfaces while maintaining system tension and performance.

Complements

• Integrated LED micro-spots in the box and optional crossbeam spotlights.
• LED strip lighting positioned under side guides for continuous side illumination.
• Optional front vertical system (volant) or motorized vertical blind with solar power supply.

Controls and automation
Control by supplied remote or via the Gibus Connect App. Compatible with sun, rain and wind sensors for automated operation according to atmospheric conditions.

Finishing and fabrics
Available in 30 standard Gibus colours with custom finishes possible. Example paint: Anthracite RAL 7016 (Sablé, Matt, Satin). Fabrics selected for climatic and visual comfort and long-term performance.

Documentation
Technical and configuration details available in the product catalogue (PDF).

Technical specifications

• Type: tensioned screen system with integrated tensioning mechanism
• Guides: ZIP side guides for stable fabric guidance
• Operation: motorized as standard
• Protection: fabric stored inside a box
• Applications: skylights, verandas, glazed roofs, low-pitch installations
• Configurations: suspended, supported, pergola version (NIVO+)
• Lighting: integrated LED micro-spots; optional crossbeam spotlights; LED strips under guides
• Optional front vertical system (Volant) and motorized vertical blind with solar power
• Controls: remote control and Gibus Connect App; compatible with sun/rain/wind sensors
• Finishes: 30 colour options; example Anthracite RAL 7016 (Sablé, Matt, Satin)
• Warranty: 5-year guarantee
• Certifications: Qualicoat, CE mark
• Declared wind resistance class: 6
