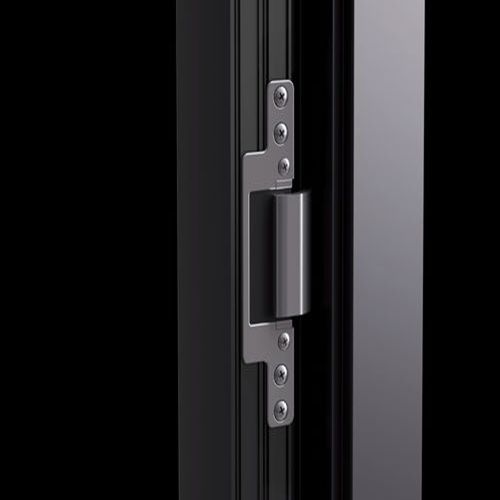

Door hinge C.H.I.C. Door ALU16

concealedhomecommercial

Functions
Reversible recessed door hinge, to be applied inside the profiles for complete product invisibility when the door is closed.
With its innovative (patented) design, the product can be adjusted in two directions (laterally and in height) by a single operator.

Technical Features
CHIC DOOR ALU16 is a concealed hinge suitable for aluminium doors, even of large size and considerable weight.
An innovative design (patented) makes it possible to apply the product very quickly inside the profiles.

To apply the hinge, in fact, it is sufficient to simply make a machining on the frame and then insert the hinge into the sash channel.
The product is fixed to the frame by means of previously inserted slip-on plates in the frame channel.

CHIC DOOR ALU16 is adjustable in two directions:
• Side adjustment (+/- 2 mm.), using a hex wrench on the hinge adjusters.
• Height adjustment (- 2 /+ 4 mm.), using a hex wrench on the adjustment screw.

The hinge rotation angle is approx. 105° (also depending on the profile geometry).
If there is a possibility of the door opening > 90°, we recommend using a Friz limitation arm, item 07621 (14/18) or 07622 (10/14).
The sash adjustment operations can be carried out by a single operator directly on site.

CHIC DOOR ALU16 is a CE marked product in accordance with EN1935 (200,000 cycles) – Class 12.

Capacity
• 120 kg with 2 hinges.
• 135 kg with 3 hinges.
• 150 kg with 4 hinges.
For load capacities with door closer, see the relevant fitting instructions.
